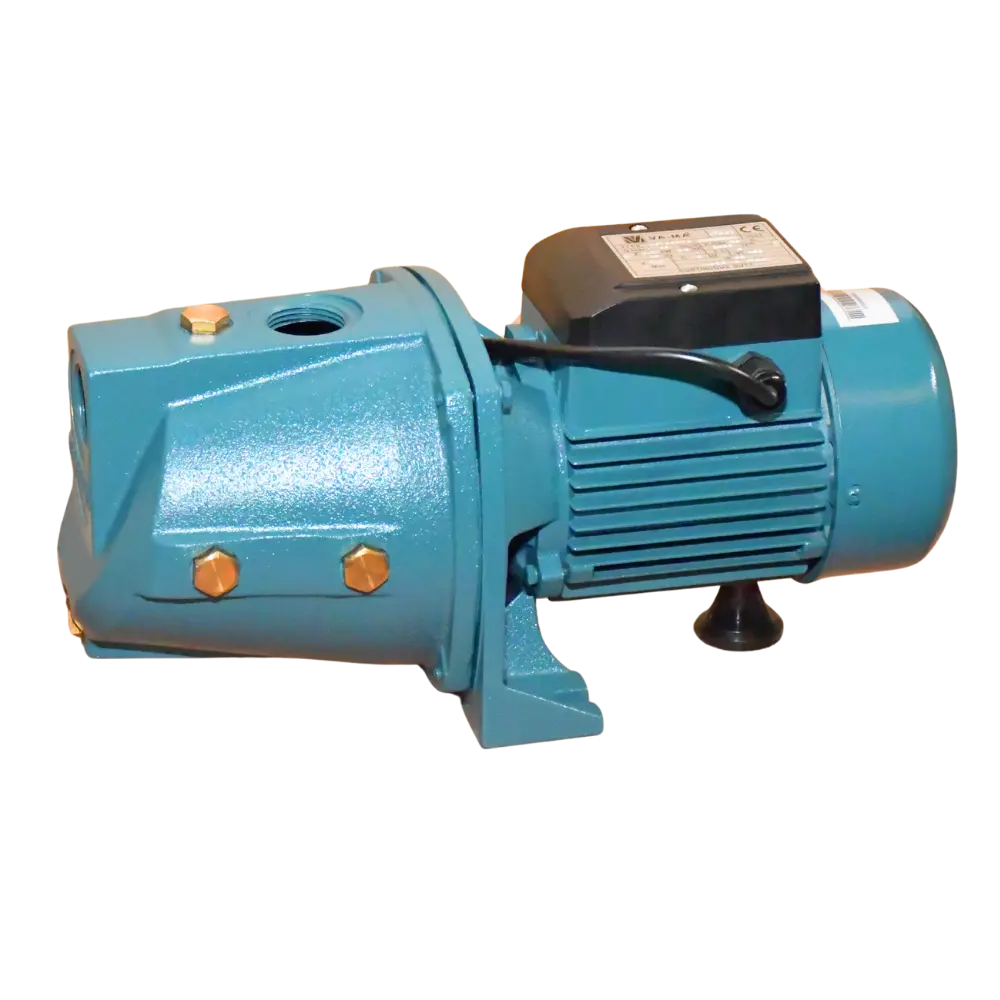

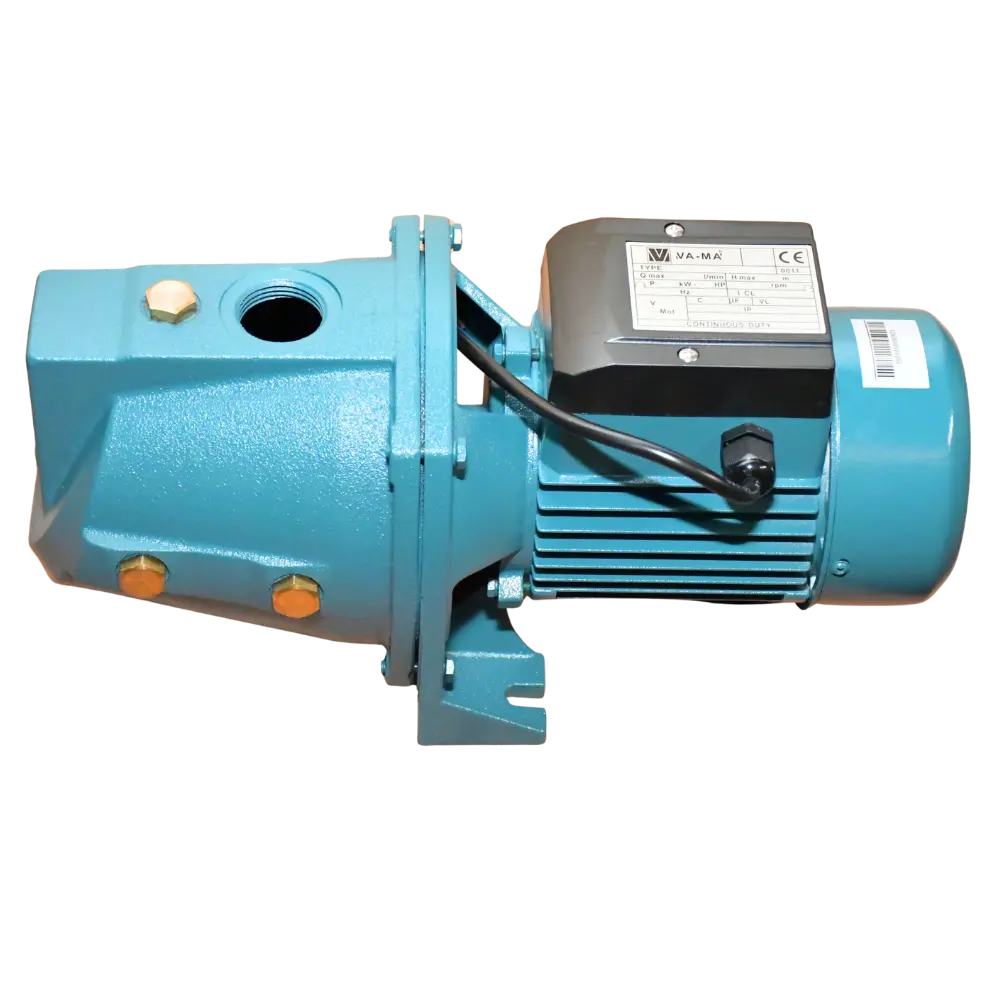

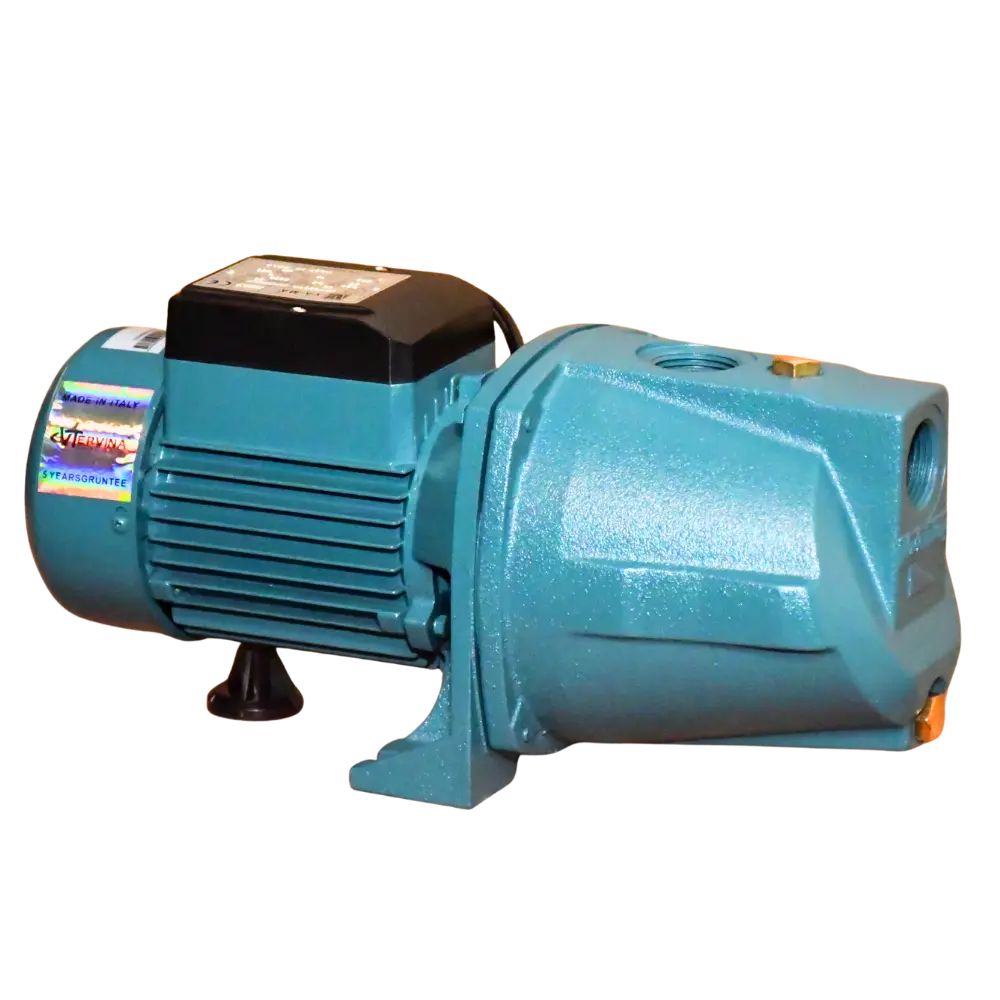

Rafello JET037TR 0.5 HP Self-Priming Water Pump
0.5 HP Self-Priming Water Pump
For Reliable Domestic Water Supply & Pressure Boosting
Reliable Pumping Solutions for Homes and Small Water Systems
Rafello JET037TR is a 0.5 HP self-priming water pump designed to pump water even when air is present in the system. It offers reliable and easy operation for clean water and liquids that are not chemically aggressive toward the pump materials. With a maximum flow rate of up to 60 L/min and a maximum head of up to 32 m, it is suitable for domestic water supply, pressure boosting systems, garden irrigation, and small and medium pressure sets.
Warranty 7 YearsTrusted Quality
Motor Power (HP)0.5 HP
Max Flow Q.Max60 L/min
Max Head H.Max32 m
TECHNICAL ADVANTAGES
Technical Advantages of the Water Pump & Motor
Self-priming pump design
Designed to pump water even when air is present
Suitable for clean water applications
Reliable and easy to use
Maximum flow rate up to 60 L/min
Maximum head up to 32 m
Two-pole induction motor
External cooling
Class F insulation
Thermal protection
IP44 protection
Continuous-duty S1 operation
Epoxy electro coating treatment
APPLICATIONS & USES
Applications & Uses of the Water Pump & Motor by RAFELLO
Domestic water supply
Pressure boosting systems
Garden irrigation
Small and medium pressure sets
Technical Specifications
| Specification | Value |
|---|---|
| Model | Rafello JET037TR |
| Pump Type | Self-Priming Water Pump |
| Motor Power | 0.5 HP |
| Maximum Flow Rate | Up to 60 L/min |
| Maximum Head | Up to 32 m |
| Maximum Water Temperature | 50 °C |
| Maximum Ambient Temperature | Up to 40 °C |
| Voltage | 220V / 50Hz |
| Protection | IP44 |
| Motor Speed | 2900 rpm |
| Service | Continuous Duty S1 |
| Insulation | Class F |
| Motor Type | Two-Pole Induction Motor |
| Cooling | External Cooling |
| Thermal Protection | Yes |
| Surface Treatment | Epoxy Electro Coating |
Material Construction
High-reliability components compliant with European industrial standards.
| Component | Material |
|---|---|
| Pump Body | Cast Iron G20 |
| Pump Bracket | Cast Iron G20 |
| Impeller | Brass H59 |
| Diffuser | PPO |
| Pump Shaft | Stainless Steel AISI 304 |
| Mechanical Seal | Ceramic / Graphite |
Italian Manufacturing Standards
Rafello follows strict European manufacturing standards, with products undergoing comprehensive quality inspections and hydraulic performance testing before supply. This engineering approach helps provide long service life and consistent operating performance suitable for engineering applications. The product also carries the CE European marking and is manufactured according to ISO 9001 quality standards.
Technical Support & Tervina Egypt Group Warranty
Tervina Egypt Group provides technical support to help customers select the appropriate Rafello JET037TR water pump according to the application and operating requirements, with support for domestic water supply and pressure boosting applications.
Installation & Maintenance Guidelines
For reliable operation, the pump should be installed in a suitable and well-ventilated location and protected from direct weather exposure. Ensure that the electrical supply matches 220V / 50Hz and that suction and discharge connections are properly secured. Before initial operation, follow the applicable pump preparation and installation instructions. Regularly inspect the pump, connections, and operating conditions, and disconnect the electrical supply before maintenance.
FREQUENTLY ASKED QUESTIONS
Frequently Asked Questions about the RAFELLO Water Pump & Motor
Is the Rafello JET037TR a self-priming water pump?
Yes. The JET037TR is a self-priming water pump designed to pump water even when air is present.
What is the motor power of the Rafello JET037TR?
The motor power is 0.5 HP.
What is the maximum head?
The maximum head is 32 m.
What is the operating voltage?
The pump operates at 220V / 50Hz.
What type of water is the pump suitable for?
It is suitable for clean water and liquids that are not chemically aggressive toward the pump materials.
Can the pump be used for domestic water supply?
Yes. It is suitable for domestic water supply applications.
Can it be used for pressure boosting?
Yes. The supplied data specifies pressure boosting systems as one of its applications.
Can it be used for garden irrigation?
Yes. Garden irrigation is listed among the intended applications.
What is the protection rating?
The pump has IP44 protection.
Does the motor have thermal protection?
Yes. The pump features thermal protection.
What is the insulation class?
The motor has Class F insulation.
Is the pump suitable for continuous operation?
Yes. The specified service is Continuous Duty S1.
