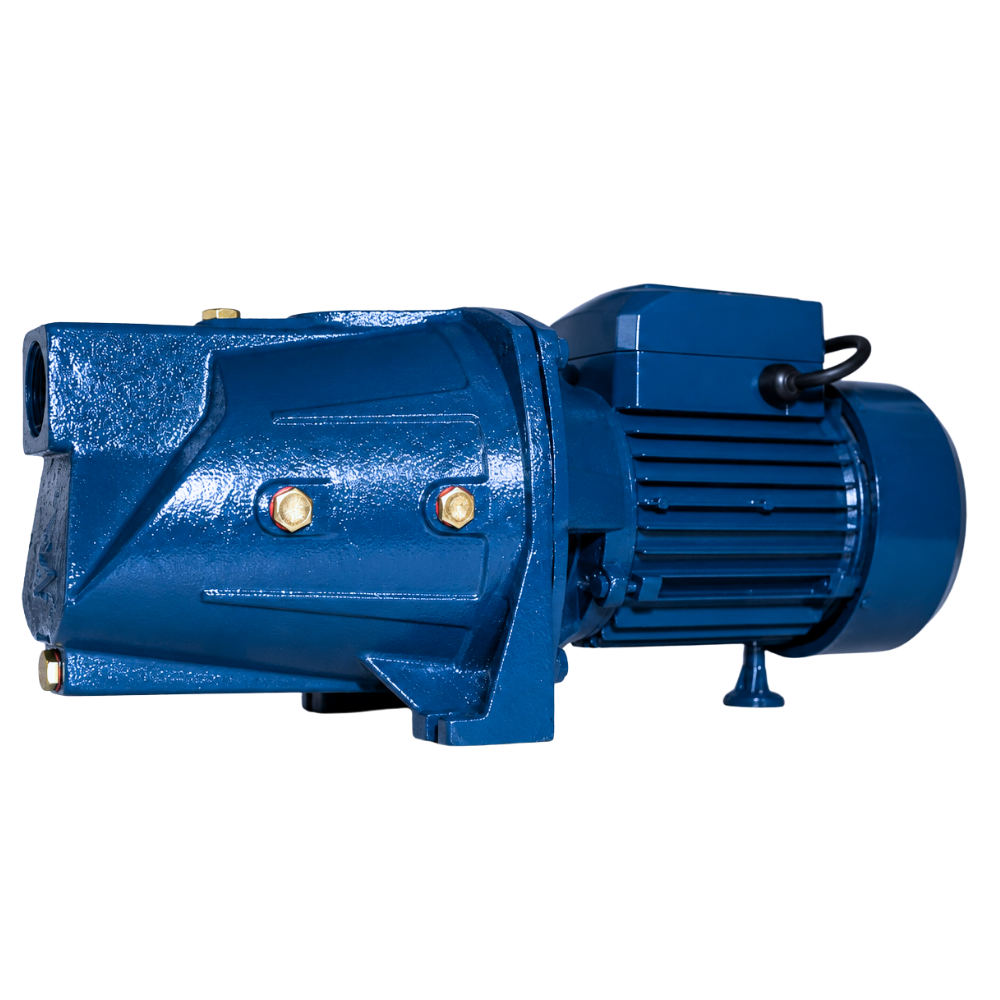

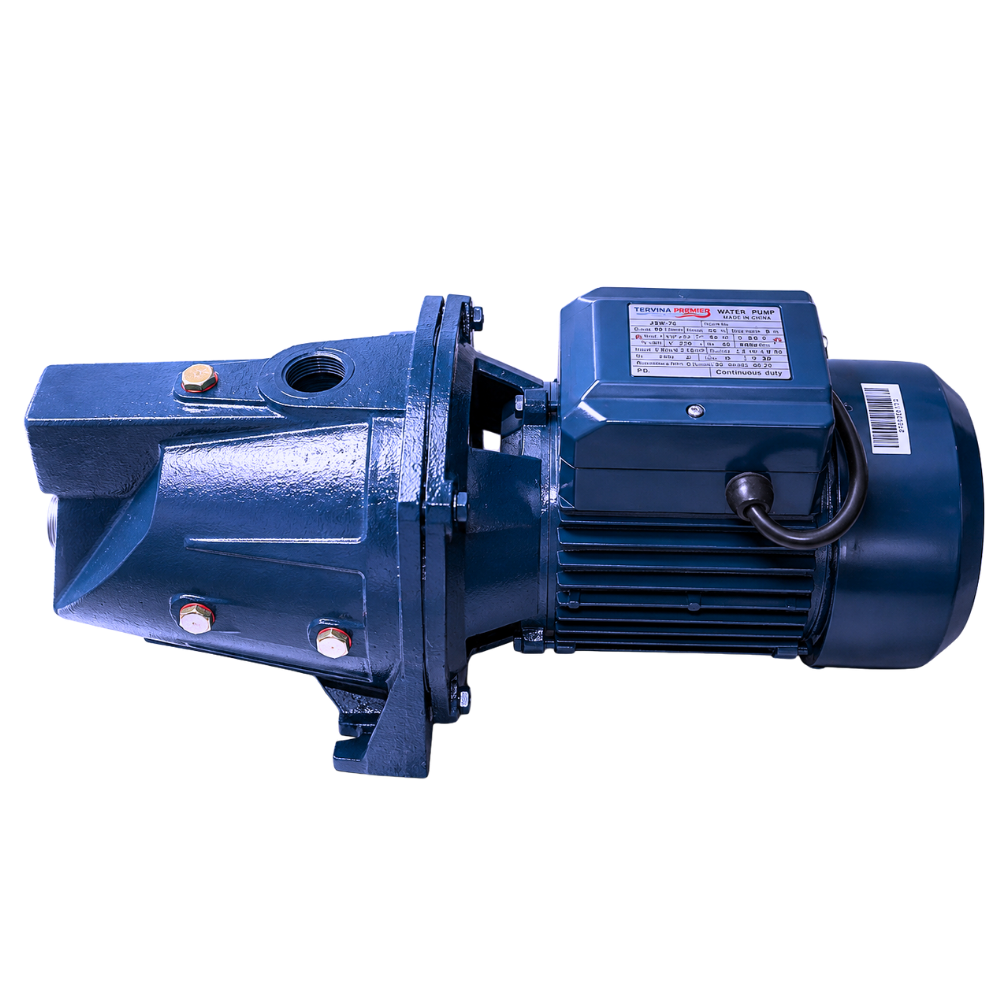

Tervina Premier JSW-65 1.5 HP Water Pump | 48 m Head
1.5 HP Water Pump with Up to 48 m Head
A Practical and Reliable Solution for Water Supply and Pressure Boosting
Reliable Performance with Motor Protection for Domestic Applications
Tervina Premier JSW-65 is a 1.5 HP water pump designed for water supply and pressure boosting applications, delivering a maximum head of up to 48 m and a maximum flow rate of up to 90 L/min. It operates at 220V and features copper winding, a stainless steel impeller, stainless steel shaft, cast iron guide cover, overload/burn protection, and an empty insulated body designed to help protect against rust. The product is made in China and comes with a 2-year warranty.
Warranty 2 YearsTrusted Quality
Motor Power (HP)1.5 HP
Max Flow Q.Max90 L/min
Max Head H.Max48 m
TECHNICAL ADVANTAGES
Technical Advantages of the Water Pump & Motor
1.5 HP motor.
Maximum head up to 48 m.
Maximum flow rate up to 90 L/min.
Copper motor winding.
Stainless steel impeller.
Stainless steel shaft.
Cast iron guide cover.
Overload and burn protection.
Empty insulated body designed to help protect against rust.
220V operation.
2-year warranty.
APPLICATIONS & USES
Applications & Uses of the Water Pump & Motor by PREMIER
Domestic water supply.
Water pressure boosting.
Household applications.
Water pumping applications requiring up to 48 m head.
Water applications requiring flow up to 90 L/min.
Technical Specifications
| Specification | Value |
|---|---|
| Model | JSW-65 |
| Country of Manufacture | china |
| Motor Power | 1.5 HP |
| Maximum Head | 48 m |
| Maximum Flow Rate | 90 L/min |
| Suction | 1.25 inch |
| Discharge | 1 inch |
| Voltage | 220V |
| Motor Winding | Copper |
| Impeller | Stainless Steel |
| Shaft | Stainless Steel |
| Guide Cover | Cast Iron |
| Protection | Overload / Burn Protection |
| Body | Empty insulated body for rust protection |
| Warranty | 2 Years |
Material Construction
High-reliability components compliant with European industrial standards.
| Component | Material |
|---|---|
| Motor Winding | Copper |
| Impeller | Stainless Steel |
| Shaft | Stainless Steel |
| Guide Cover | Cast Iron |
| Body | Empty insulated body for rust protection |
Italian Manufacturing Standards
Tervina Premier JSW-65 is designed to provide practical performance for water supply and pressure boosting applications. It features copper motor winding, a stainless steel impeller and shaft, a cast iron guide cover, overload/burn protection, and an insulated body designed to help protect against rust.
Technical Support & Tervina Egypt Group Warranty
Tervina provides a 2-year warranty on the product, along with customer support during the warranty period. Warranty Activation To activate the warranty, call 19301.
Installation & Maintenance Guidelines
The pump and electrical connections should be installed by a qualified technician. Make sure the power supply matches 220V, properly secure the suction and discharge connections, inspect the connections regularly, and disconnect the power supply before carrying out maintenance or inspection.
