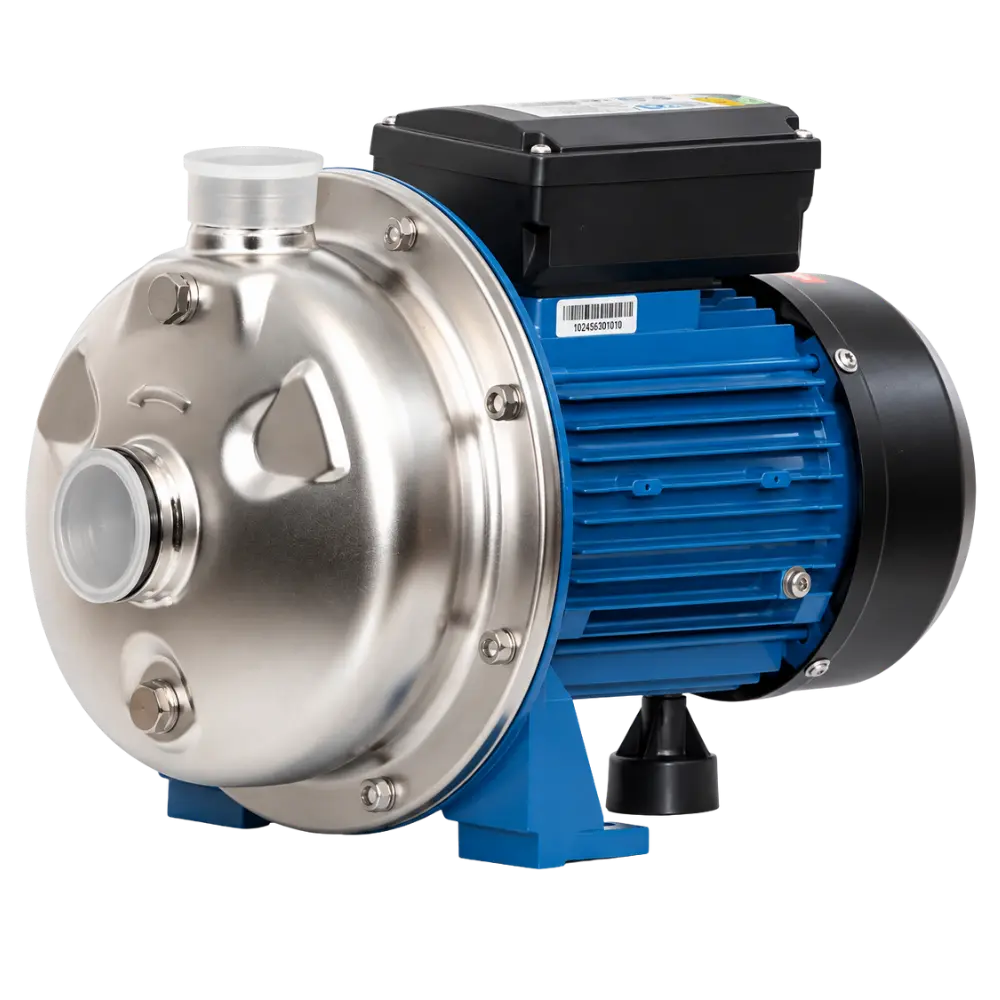

VAMA BLC High-Efficiency AISI 316 Stainless Steel Centrifugal Pump Series
Single-Stage Stainless Steel Pump for Water Supply, HVAC, Liquid Transfer, and Hygienic Applications
High hydraulic efficiency, corrosion resistance, stable performance, and durable construction
A reliable solution for demanding hygienic and corrosion-resistant fluid handling applications
The VAMA BLC Centrifugal Pump Series is a premium single-stage centrifugal pump featuring a closed impeller designed to provide enhanced hydraulic efficiency and stable performance. Manufactured using advanced hydraulic bulging technology, the BLC Series combines robust structural design, high mechanical strength, and long service life. Its compact configuration and optimized spiral volute casing provide smooth flow characteristics and improved energy efficiency. All wetted components are manufactured from high-grade AISI 316 stainless steel, providing excellent corrosion resistance, outstanding durability, and high hygienic standards. The BLC Series is suitable for domestic, agricultural, industrial, and food processing applications. It is particularly suitable for water supply systems, HVAC and air-conditioning systems, liquid transfer, and other applications requiring hygienic and corrosion-resistant pumping solutions.
Warranty 2 YearsTrusted Quality
Max Flow Q.Max450 l/min
Max Head H.Max36 m
TECHNICAL ADVANTAGES
Technical Advantages of the Water Pump & Motor
Single-stage centrifugal design with a closed impeller for enhanced hydraulic efficiency and stable performance.
Advanced hydraulic bulging technology for robust structure and high mechanical strength.
Optimized spiral volute casing for smooth flow characteristics and improved energy efficiency.
AISI 316 stainless steel wetted components for excellent corrosion resistance, durability, and hygienic performance.
Compact configuration suitable for a wide range of technical and commercial installations.
AISI 316 stainless steel pump shaft for reliable mechanical performance.
External motor cooling with Class F insulation and IP55 protection.
Thermal protection for single-phase versions.
Designed for continuous service S1.
APPLICATIONS & USES
Applications & Uses of the Water Pump & Motor by VAMA
Domestic water supply systems
Agricultural water systems
Industrial applications
Food processing applications
Water supply systems
HVAC systems
Air-conditioning systems
Liquid transfer
Hygienic fluid handling
Corrosion-resistant pumping applications
Technical Specifications
| Specification | Value |
|---|---|
| Product Series | VAMA BLC |
| Pump Type | Single-Stage Centrifugal Pump |
| Maximum Flow Rate | Up to 450 l/min |
| Maximum Head | Up to 36 m |
| Maximum Water Temperature | Up to 104°C |
| Maximum Ambient Temperature | Up to 50°C |
| Impeller Type | Closed Impeller |
| Hydraulic Technology | Advanced Hydraulic Bulging Technology |
| Pump Casing | Optimized Spiral Volute Casing |
| Pump Body | Stainless Steel AISI 316 |
| Pump Bracket | Aluminum |
| Impeller | Stainless Steel AISI 316 |
| Pump Shaft | Stainless Steel AISI 316 |
| Mechanical Seal | Graphite / Silicon |
| Motor | Two-Pole Induction Motor |
| Motor Speed | 2900 rpm |
| Cooling | External Cooling |
| Insulation Class | F |
| Protection Degree | IP55 |
| Single-Phase Supply | 220V / 50Hz |
| Three-Phase Supply | 380V / 50Hz |
| Thermal Protection | For Single-Phase Version |
| Operating Mode | Continuous Service S1 |
Material Construction
High-reliability components compliant with European industrial standards.
| Component | Material |
|---|---|
| Pump Body | Stainless Steel AISI 316 |
| Pump Bracket | Aluminum |
| Impeller | Stainless Steel AISI 316 |
| Pump Shaft | Stainless Steel AISI 316 |
| Mechanical Seal | Graphite / Silicon |
Italian Manufacturing Standards
The VAMA BLC Series combines a compact centrifugal pump structure with advanced hydraulic bulging technology and an optimized spiral volute casing. The AISI 316 stainless steel construction of the wetted components provides excellent corrosion resistance, durability, and hygienic performance. The closed impeller and optimized hydraulic design support efficient and stable operation, making the series suitable for demanding domestic, agricultural, industrial, and food processing applications.
Technical Support & Tervina Egypt Group Warranty
For product selection, technical assistance, installation support, and warranty inquiries, contact Tervina Egypt Group: Customer Service: 19301
Installation & Maintenance Guidelines
Install the pump on a stable and properly supported foundation. Ensure all hydraulic and electrical connections are correctly installed and securely sealed before operation. Select the appropriate electrical configuration according to the specific model, either 220V / 50Hz single-phase or 380V / 50Hz three-phase. Before starting the pump, inspect the pump body, impeller, mechanical seal, piping, and electrical connections. Operate the pump within the specified temperature and performance limits and maintain adequate ventilation around the motor to support external cooling.
