VAMA CA High-Efficiency Stainless Steel Centrifugal Pump Series
Horizontal Single-Stage Centrifugal Pump for Domestic, Agricultural, and Industrial Applications
High efficiency, corrosion resistance, reliable performance, and easy maintenance
A dependable solution for water supply, pressure boosting, heating, and fluid transfer

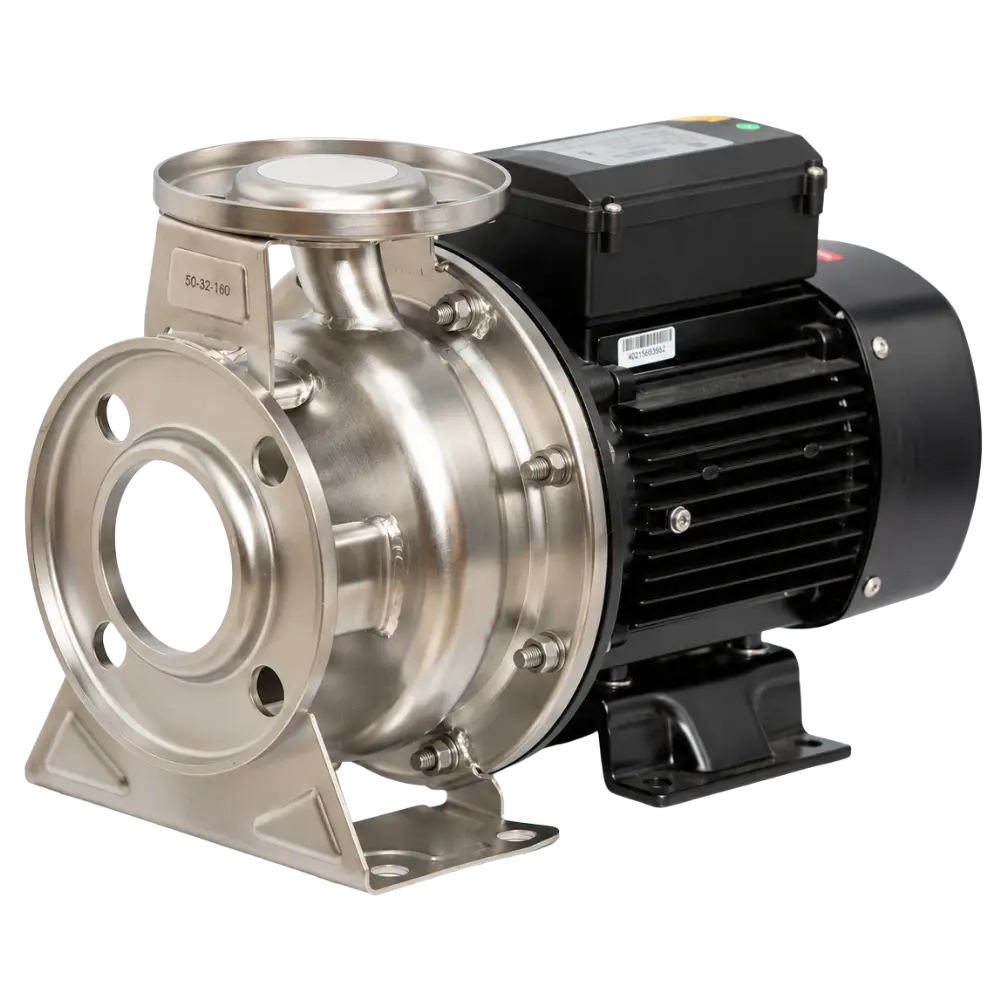

The VAMA CA Centrifugal Pump Series is a horizontal, single-stage centrifugal pump featuring a closed impeller and advanced hydraulic bulge technology for efficient performance and durability. The pump is designed with a compact structure and a highly efficient spiral volute casing to provide reliable and stable operation across a wide range of applications. All wetted components are manufactured from high-quality stainless steel AISI 304 or AISI 316, providing excellent corrosion resistance and high hygiene standards for demanding fluid transfer applications. The CA series is also designed for easy maintenance. The motor can be removed without dismantling the pump casing or disconnecting the pipeline, helping to reduce downtime and service costs. The series is suitable for domestic, agricultural, and industrial applications, including water supply, air conditioning, pressure boosting, firefighting, heating systems, and other fluid transfer applications.
Warranty 2 YearsTrusted Quality
Max Flow Q.Max7500 l/min
Max Head H.Max75 m
TECHNICAL ADVANTAGES
Technical Advantages of the Water Pump & Motor
Horizontal single-stage centrifugal design with a closed impeller for efficient and stable operation.
High-efficiency spiral volute casing designed for reliable hydraulic performance.
Stainless steel AISI 304 / AISI 316 wetted components for excellent corrosion resistance and high hygiene standards.
AISI 316 stainless steel pump shaft for reliable mechanical performance.
Easy-maintenance design allowing motor removal without dismantling the pump casing or disconnecting the pipeline.
External motor cooling with Class F insulation and IP55 protection.
Thermal protection for single-phase versions.
Designed for continuous service S1.
APPLICATIONS & USES
Applications & Uses of the Water Pump & Motor by VAMA
Water supply systems
Air conditioning systems
Pressure boosting systems
Firefighting systems
Heating systems
Domestic water applications
Agricultural water applications
Industrial water systems
Fluid transfer applications
Technical Specifications
| Specification | Value |
|---|---|
| Product Series | VAMA CA |
| Pump Type | Horizontal Single-Stage Centrifugal Pump |
| Maximum Flow Rate | Up to 7500 l/min |
| Maximum Head | Up to 75 m |
| Maximum Water Temperature | Up to 104°C |
| Maximum Ambient Temperature | Up to 50°C |
| Impeller Type | Closed Impeller |
| Hydraulic Design | Advanced Hydraulic Bulge Technology |
| Pump Casing | Efficient Spiral Volute Casing |
| Pump Body | Stainless Steel AISI 304 / 316 |
| Pump Bracket | Aluminum |
| Impeller | Stainless Steel AISI 304 / 316 |
| Pump Shaft | Stainless Steel AISI 316 |
| Mechanical Seal | Graphite / Silicon |
| Motor | Two-Pole Induction Motor |
| Motor Speed | 2900 rpm |
| Cooling | External Cooling |
| Insulation Class | F |
| Protection Degree | IP55 |
| Single-Phase Supply | 220V / 50Hz |
| Three-Phase Supply | 380V / 50Hz |
| Thermal Protection | For Single-Phase Version |
| Operating Mode | Continuous Service S1 |
| Maintenance Design | Motor removable without dismantling pump casing or disconnecting pipeline |
Material Construction
High-reliability components compliant with European industrial standards.
| Component | Material |
|---|---|
| Pump Body | Stainless Steel AISI 304 / 316 |
| Pump Bracket | Aluminum |
| Impeller | Stainless Steel AISI 304 / 316 |
| Pump Shaft | Stainless Steel AISI 316 |
| Mechanical Seal | Graphite / Silicon |
Italian Manufacturing Standards
The VAMA CA series is built around a compact and efficient centrifugal pump design using stainless steel materials for the main wetted components. The use of AISI 304 / AISI 316 stainless steel supports excellent corrosion resistance and high hygiene standards, making the series suitable for demanding water and fluid transfer applications. The hydraulic design, closed impeller, external motor cooling, Class F insulation, IP55 protection, and continuous S1 service contribute to reliable operation within the specified conditions.
Technical Support & Tervina Egypt Group Warranty
For product selection, technical assistance, installation support, and warranty inquiries, contact Tervina Egypt Group: Customer Service: 19301
Installation & Maintenance Guidelines
Install the pump on a stable and properly supported foundation. Ensure that the suction and discharge piping is correctly installed and securely connected. Check all hydraulic and electrical connections before starting the pump. Select the appropriate electrical configuration according to the specific model, either 220V / 50Hz single-phase or 380V / 50Hz three-phase. One of the main maintenance advantages of the CA series is that the motor can be removed without dismantling the pump casing or disconnecting the pipeline, helping simplify servicing and reduce downtime. Regularly inspect the pump, mechanical seal, shaft, connections, and associated piping.
