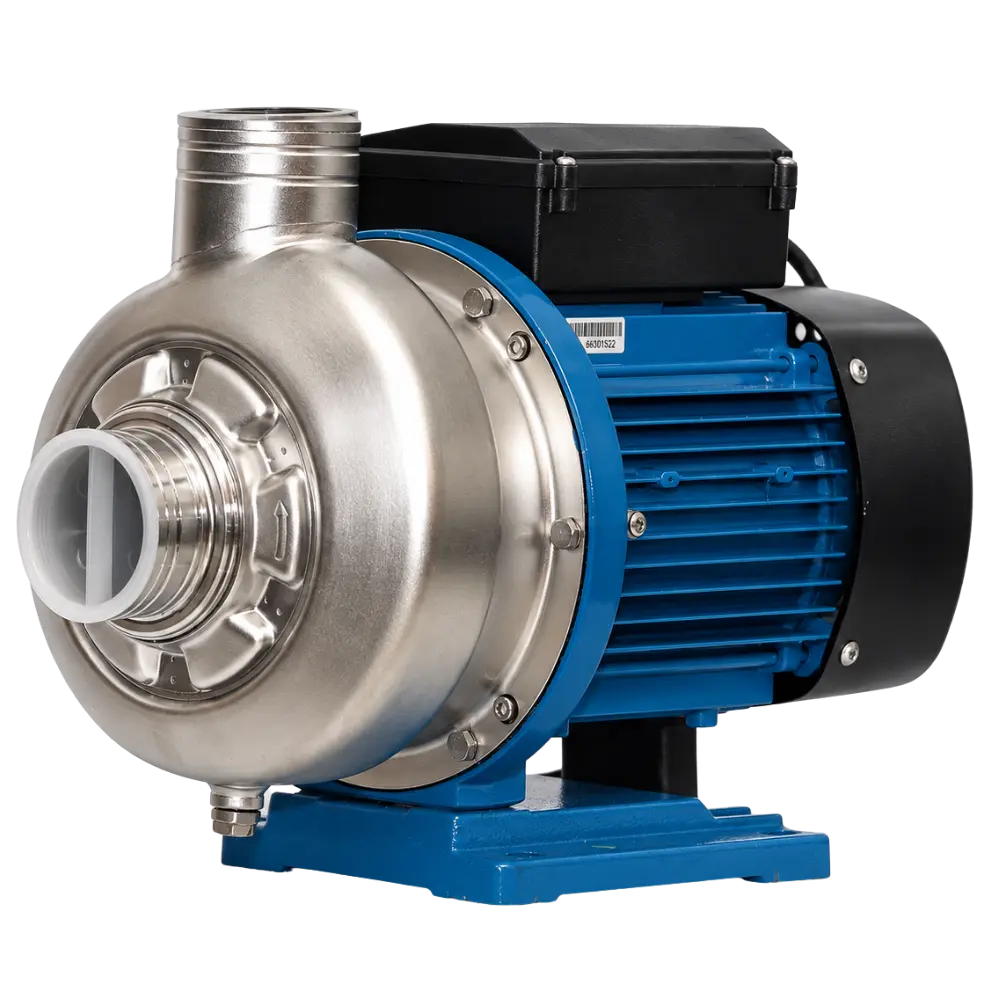

VAMA CJEX Pump
Reliable transfer, high corrosion resistance, durable construction, and stable operation
Reliable transfer, high corrosion resistance, durable construction, and stable operation
A dependable solution for domestic and agricultural water transfer applications
The VAMA CJEX Self-Priming Pump Series is precision-engineered to provide efficient and dependable transfer of water and air-entrained liquids. Designed for consistent performance and user-friendly operation, the CJEX series delivers reliable operation across a wide range of working conditions. The primary pump components are manufactured from premium-grade AISI 316 stainless steel, providing outstanding corrosion resistance, high mechanical durability, and enhanced hygienic performance. This robust construction supports long service life and dependable operation, including applications where increased resistance to corrosion is required. The CJEX series is particularly suitable for domestic and agricultural applications where efficiency, durability, and long-term operational reliability are essential.
Warranty 2 YearsTrusted Quality
Max Flow Q.Max5 m³/h
Max Head H.Max56 m
TECHNICAL ADVANTAGES
Technical Advantages of the Water Pump & Motor
Self-priming design suitable for efficient transfer of water and air-entrained liquids.
AISI 316 stainless steel primary components for excellent corrosion resistance and mechanical durability.
Hygienic construction suitable for demanding water transfer applications.
Stainless steel AISI 316 pump body, impeller, and shaft for reliable long-term performance.
External motor cooling with Class F insulation and IP55 protection.
Thermal protection for single-phase versions.
Designed for continuous service S1.
APPLICATIONS & USES
Applications & Uses of the Water Pump & Motor by VAMA
Domestic water transfer
Agricultural water transfer
Domestic water supply applications
Agricultural water systems
Water transfer systems
Air-entrained liquid transfer
General water pumping applications
Technical Specifications
| Specification | Value |
|---|---|
| Product Series | VAMA CJEX |
| Pump Type | Self-Priming Pump |
| Maximum Flow Rate | Up to 5 m³/h |
| Maximum Head | Up to 56 m |
| Maximum Water Temperature | Up to 104°C |
| Maximum Ambient Temperature | Up to 50°C |
| Pump Body | Stainless Steel AISI 316 |
| Diffuser | PPO |
| Pump Bracket | Aluminum |
| Impeller | Stainless Steel AISI 316 |
| Pump Shaft | Stainless Steel AISI 316 |
| Mechanical Seal | Graphite / Silicon |
| Motor | Two-Pole Induction Motor |
| Motor Speed | 2900 rpm |
| Cooling | External Cooling |
| Insulation Class | F |
| Protection Degree | IP55 |
| Single-Phase Supply | 220V / 50Hz |
| Three-Phase Supply | 380V / 50Hz |
| Thermal Protection | For Single-Phase Version |
| Operating Mode | Continuous Service S1 |
Material Construction
High-reliability components compliant with European industrial standards.
| Component | Material |
|---|---|
| Pump Body | Stainless Steel AISI 316 |
| Diffuser | PPO |
| Pump Bracket | Aluminum |
| Impeller | Stainless Steel AISI 316 |
| Pump Shaft | Stainless Steel AISI 316 |
| Mechanical Seal | Graphite / Silicon |
Italian Manufacturing Standards
The VAMA CJEX series combines a self-priming pump design with premium AISI 316 stainless steel components to provide corrosion resistance, mechanical durability, and long service life. The stainless steel construction of the main pump components supports reliable performance in demanding environments, while the overall design provides stable operation and practical usability. The series is particularly suited to domestic and agricultural applications where durability and long-term operational reliability are important.
Technical Support & Tervina Egypt Group Warranty
For product selection, technical assistance, installation support, and warranty inquiries, contact Tervina Egypt Group: Customer Service: 19301
Installation & Maintenance Guidelines
Install the pump on a stable and properly supported foundation. Ensure that all hydraulic and electrical connections are correctly installed and securely sealed before operation. Select the appropriate electrical configuration according to the specific model, either 220V / 50Hz single-phase or 380V / 50Hz three-phase. Before starting the pump, inspect the pump body, piping, mechanical seal, and electrical connections. Operate the pump within the specified temperature and performance limits and maintain adequate ventilation around the motor to support external cooling.
