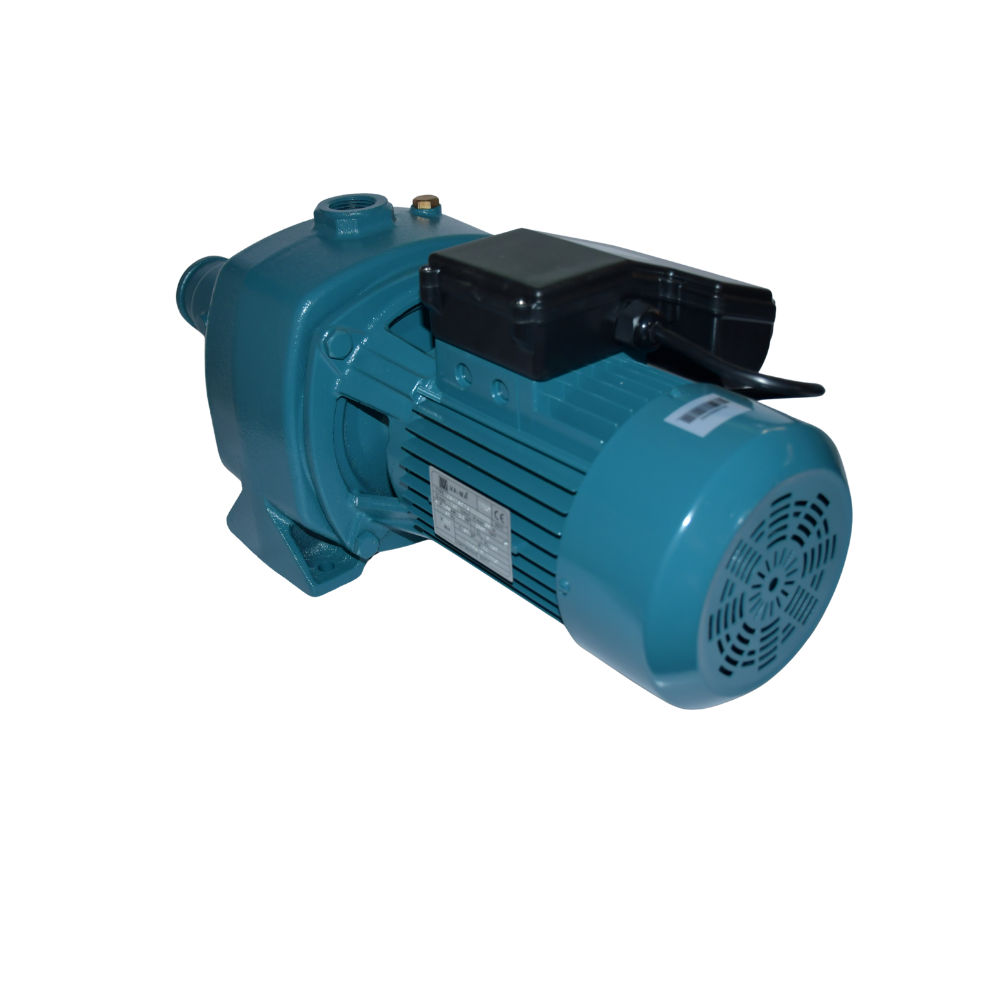

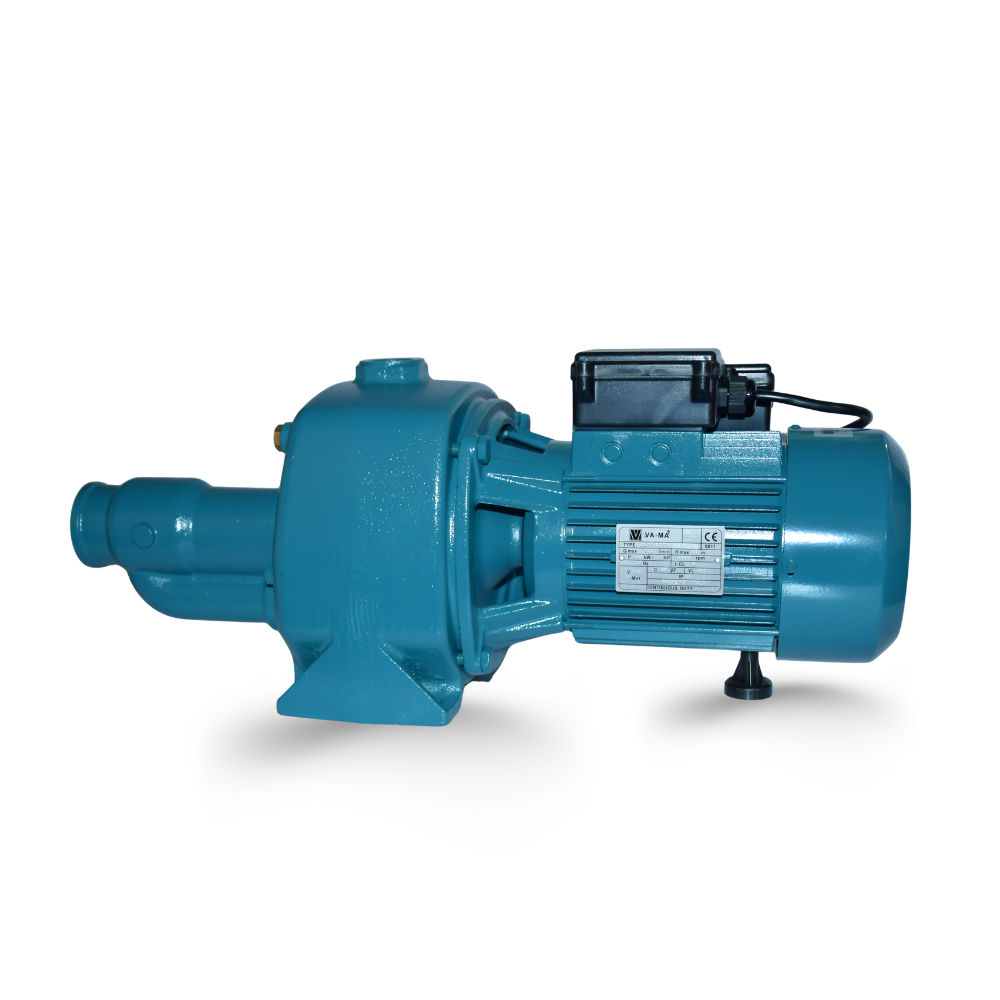

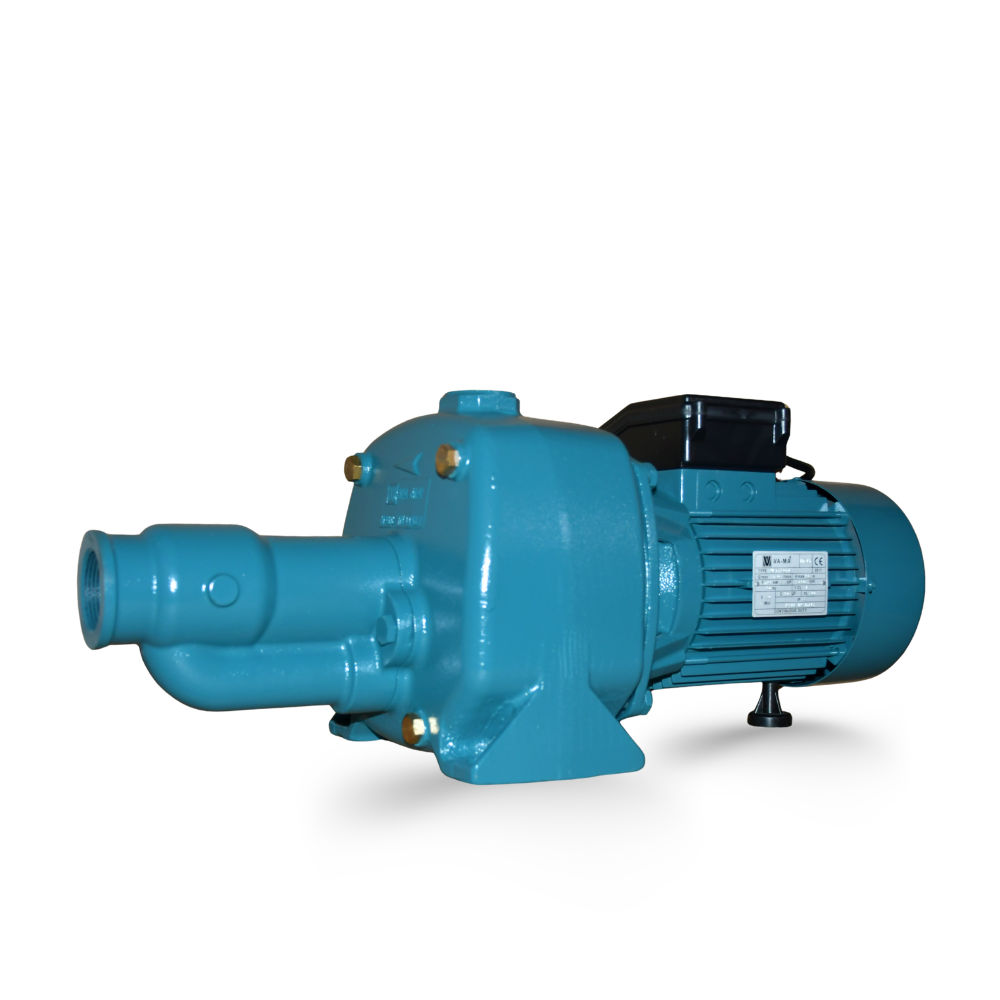

VAMA JET 220/300 TR Self-Priming Water Pump
The self-priming TR pumps are designed to pump water even when air is present. They are reliable and easy to use. Suitable for clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
Applications
- Domestic water supply
- Pressure boosting systems
- Garden irrigation
- Small and medium pressure sets
Technical Specifications
| Specification | Value |
|---|---|
| Flow Rate | Up to 140 L/min |
| Head | Up to 62 m |
| Maximum Water Temperature | 50 °C |
| Ambient Temperature | Up to 40 °C |
| Voltage | 220V / 50Hz |
| Protection | IP44 |
| Motor Speed | 2900 rpm |
| Service | Continuous duty S1 |
Pump Features
- Pump has an epoxy electro coating treatment
- Two-pole induction motor
- External cooling
- Insulation class F
- Thermal protection
Construction Materials
| Component | Material |
|---|---|
| Pump Body | Cast Iron G20 |
| Pump Bracket | Cast Iron G20 |
| Impeller | Brass H59 |
| Diffuser | PPO |
| Pump Shaft | Stainless Steel AISI 304 |
| Mechanical Seal | Ceramic / Graphite |
