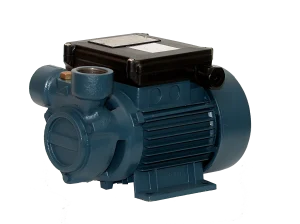

VAMA PER 50 TR Peripheral Water Pump
Peripheral positive displacement pumps with frontal pumps for small household systems and simple industrial applications; characterized by a considerable ratio between performance and required output.
Applications
- Small household water systems
- Simple industrial applications
- Domestic water supply
Technical Specifications
| Specification | Value |
|---|---|
| Flow Rate | Up to 35 L/min |
| Head | Up to 37 m |
| Maximum Water Temperature | 50 °C |
| Ambient Temperature | Up to 40 °C |
| Voltage | 220V / 50Hz |
| Protection | IP44 |
| Motor Speed | 2900 rpm |
| Service | Continuous duty S1 |
Pump Features
- Pump has an epoxy electro coating treatment
- Two-pole induction motor
- External cooling
- Insulation class F
- Thermal protection
Construction Materials
| Component | Material |
|---|---|
| Pump Body | Cast Iron G20 |
| Pump Bracket | Cast Iron G20 |
| Impeller | Brass H59 |
| Pump Shaft | Stainless Steel AISI 304 |
| Mechanical Seal | Ceramic / Graphite |
