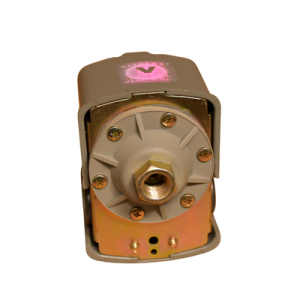

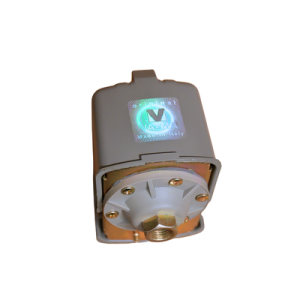

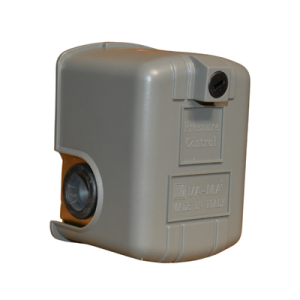

Pressure Switch PS-02
Pressure switch used in water systems. The switch starts and stops the water pump automatically according to the pressure setting. Hydraulics connection can choose: 1/4” male, female, or rotative.
Main Features
- Automatic start and stop according to system pressure
- Flexible hydraulics connection options
- Reliable and easy to use
Technical Specifications
| Specification | Value |
|---|---|
| Pressure Range | 20-100 psi |
| Pressure Setting | 20-40 psi, 30-50 psi, 40-60 psi, 50-70 psi, 60-80 psi, 70-100 psi |
| Rated Current | 12A |
| Rated Voltage | 110V-240V |
| Frequency | 50/60 Hz |
| Max Ambient Temperature | 40°C |
| Max Liquid Temperature | 60°C |
| Protection Degree | IP20 |
Options
- Crust according to customers’ needs
- Hydraulics connection according to customers’ needs
- Pressure setting according to customers’ needs
