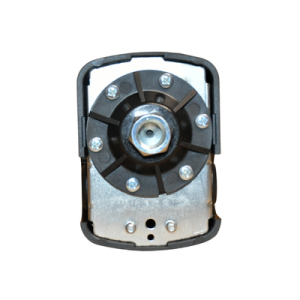

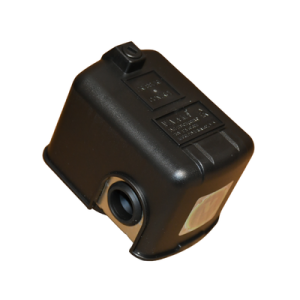

Pressure Switch PS-02B
Pressure switch start and stop the water pump automatically according to the pressure setting by customer’s needs. It is used in domestic, industrial, irrigation and water systems.
Main Features
- Automatic start/stop based on pressure
- Suitable for domestic, industrial, and irrigation systems
- Customizable pressure settings
- Reliable and easy to install
Technical Specifications
| Specification | Value |
|---|---|
| Pressure Range | 20-100 psi |
| Rated Current | 12 A |
| Rated Voltage | 240 V |
| Frequency | 50 Hz |
| Protection Degree | IP20 |
| Connector Size | ¼” female |
| Max Ambient Temperature | 40°C |
| Max Water Temperature | 60°C |
| Max Power | 2.2 KW |
