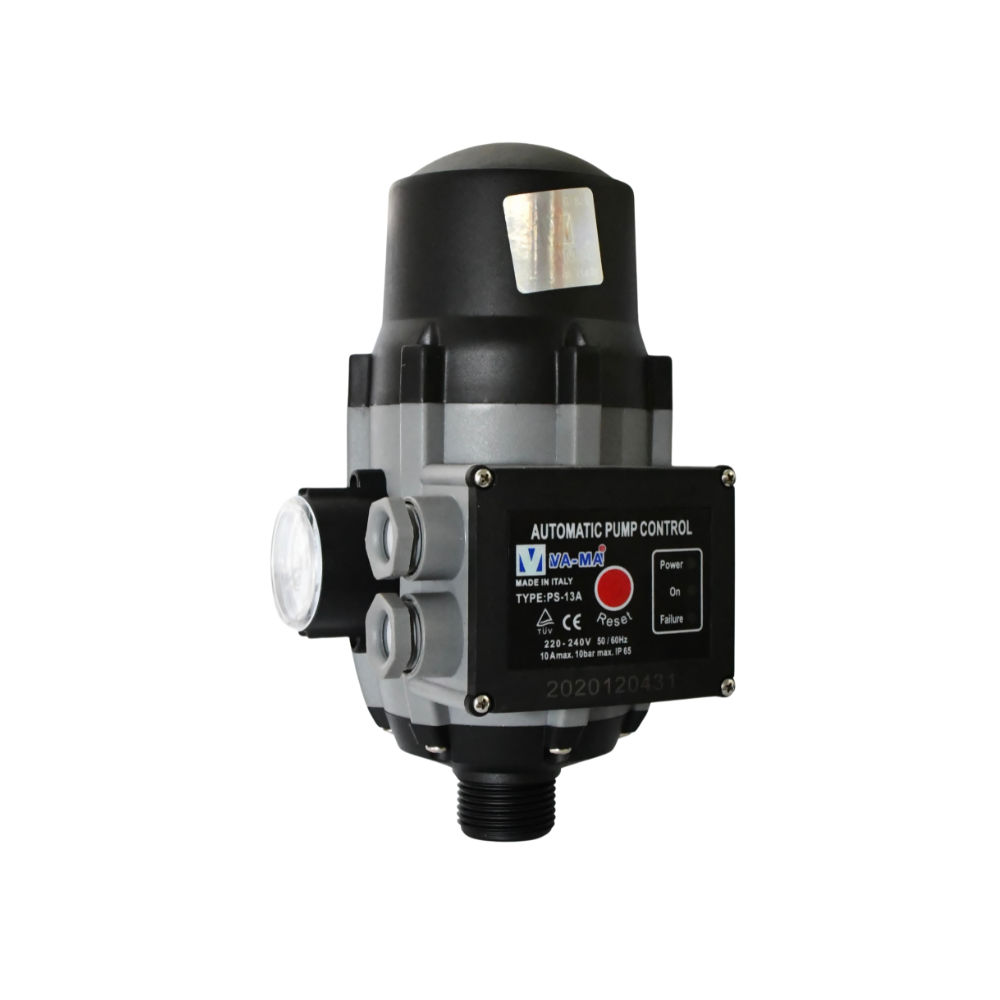

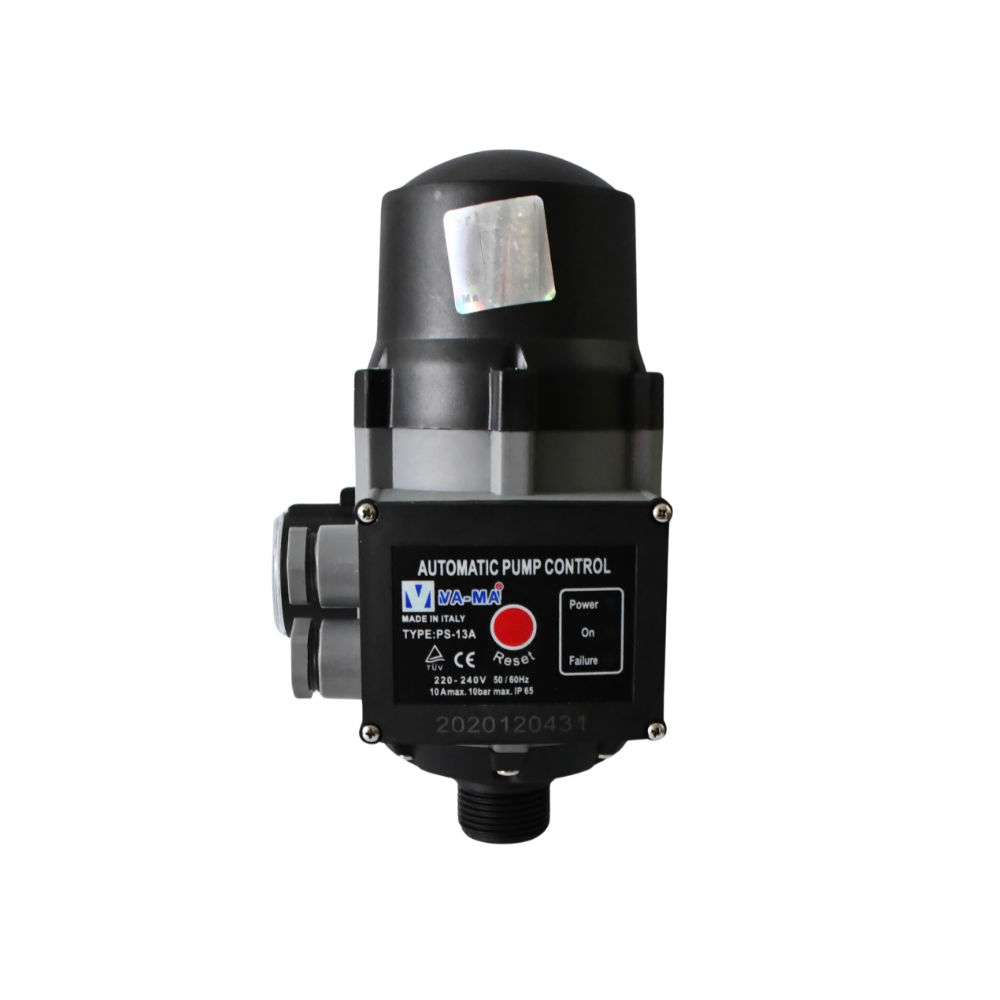

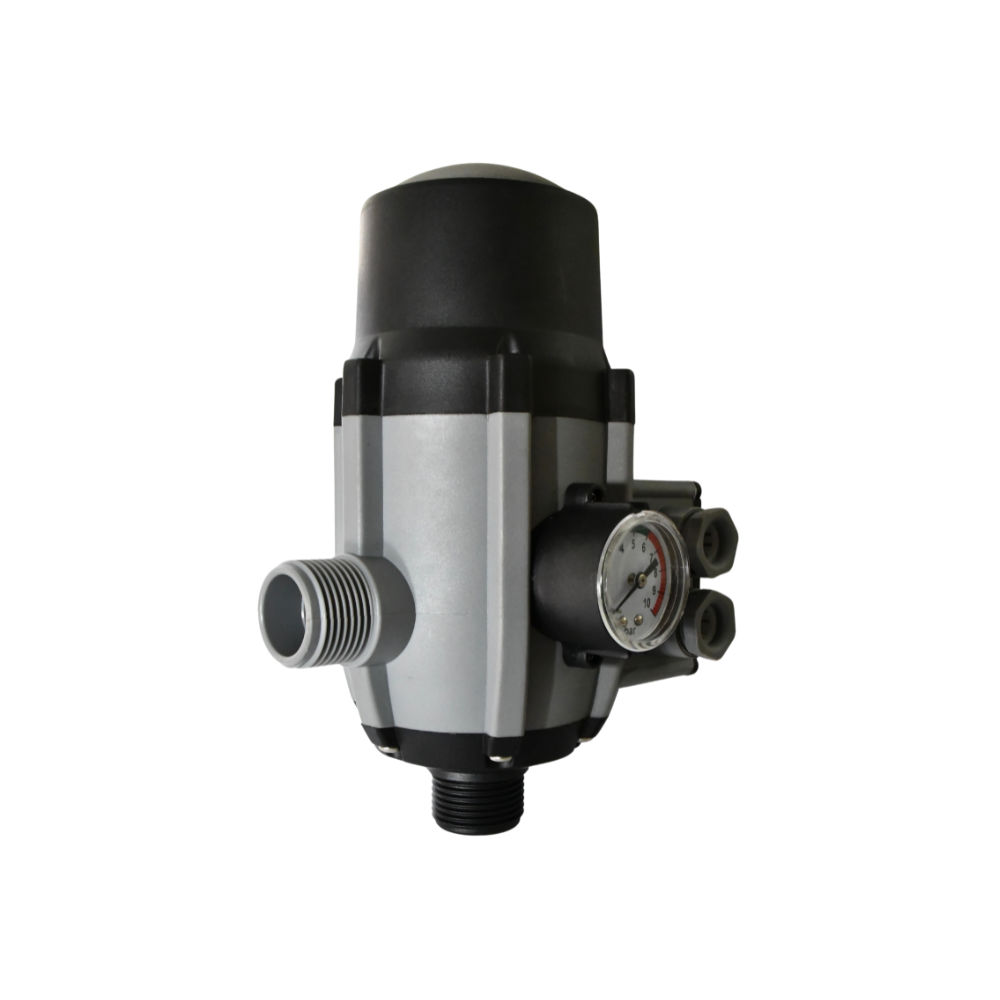

Automatic Pump Control PS-13
Stop and start the pump automatically. Stops the pump in case of water shortage. After power cut off, it can restart the pump automatically when the power returns. Forced start. Joint screw: G1″male.
Applications / Features
- Automatic pump start & stop
- Water shortage protection
- Automatic restart after power failure
- Optional models and functions (PC-13A, PC-13M, PC-13B)
- G1″ plastic pipe joint for quick connection
Technical Specifications
| Specification | Value |
|---|---|
| Starting Pressure | 1.5bar or 2.2bar |
| Max Rated Current | 10A |
| Max Allowable Pressure | 10bar |
| Rated Voltage | 110V or 220V |
| Frequency | 50/60Hz |
| Max Ambient Temperature | 40℃ |
| Max Liquid Temperature | 60℃ |
| Protection Degree | IP65 |
