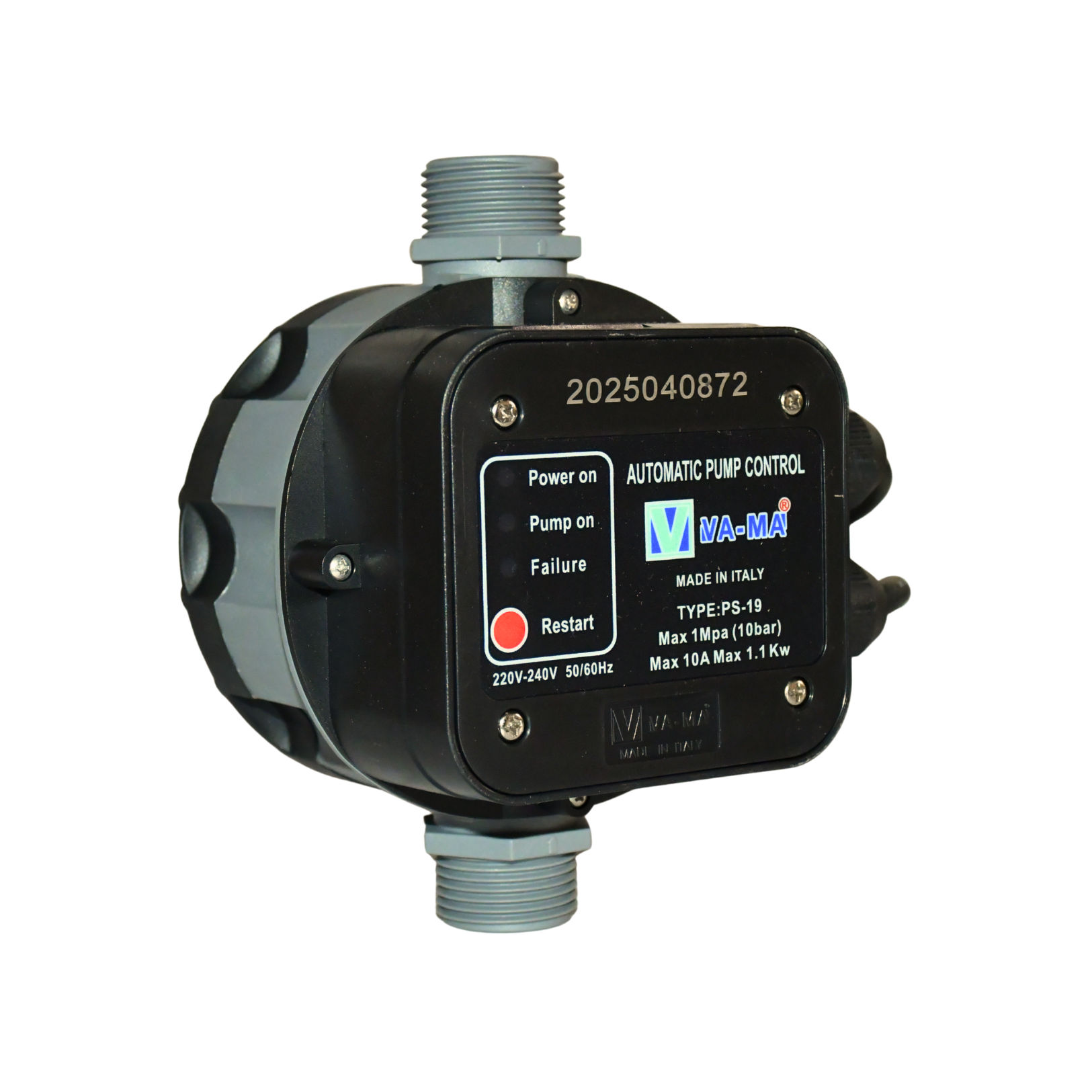

Automatic Pump Control PS-19
Stop and start the pump automatically. Stops the pump in the case of water shortage.
Can restart automatically after power cut. Forced start available.
Joint screw: G 1″ male.
Applications
- Domestic water systems
- Pressure and tank control
- Automatic restart after power loss
- Quick connection with G1″ plastic pipe joint
Technical Specifications
| Specification | Value |
|---|---|
| Starting Pressure | 1.5bar or 2.2bar |
| Max Rated Current | 10A |
| Max Allowable Pressure | 10bar |
| Rated Voltage | 110V or 220V |
| Frequency | 50/60Hz |
| Max Ambient Temperature | 40℃ |
| Max Liquid Temperature | 60℃ |
| Protection Degree | IP65 |
Options
- PC-19A: Starting pressure adjustable (1.5bar-3.0bar)
- PC-19B: With European socket and plug
- PC-19M: Automatic restart after water shortage, with intervals from 8s up to 2h
- Multiple options can be combined
