Stop and start the pump automatically. The controller protects the pump from water shortage and restarts it automatically when the power returns. It supports dual voltage (AC 85-265V) and includes advanced protection and intelligent control functions.
Main Features
Automatic pump start and stop
Water shortage protection
Automatic restart after power failure
Manual forced start
Over-pressure protection above 10 bar
Anti-stick protection (auto start every 48 hours)

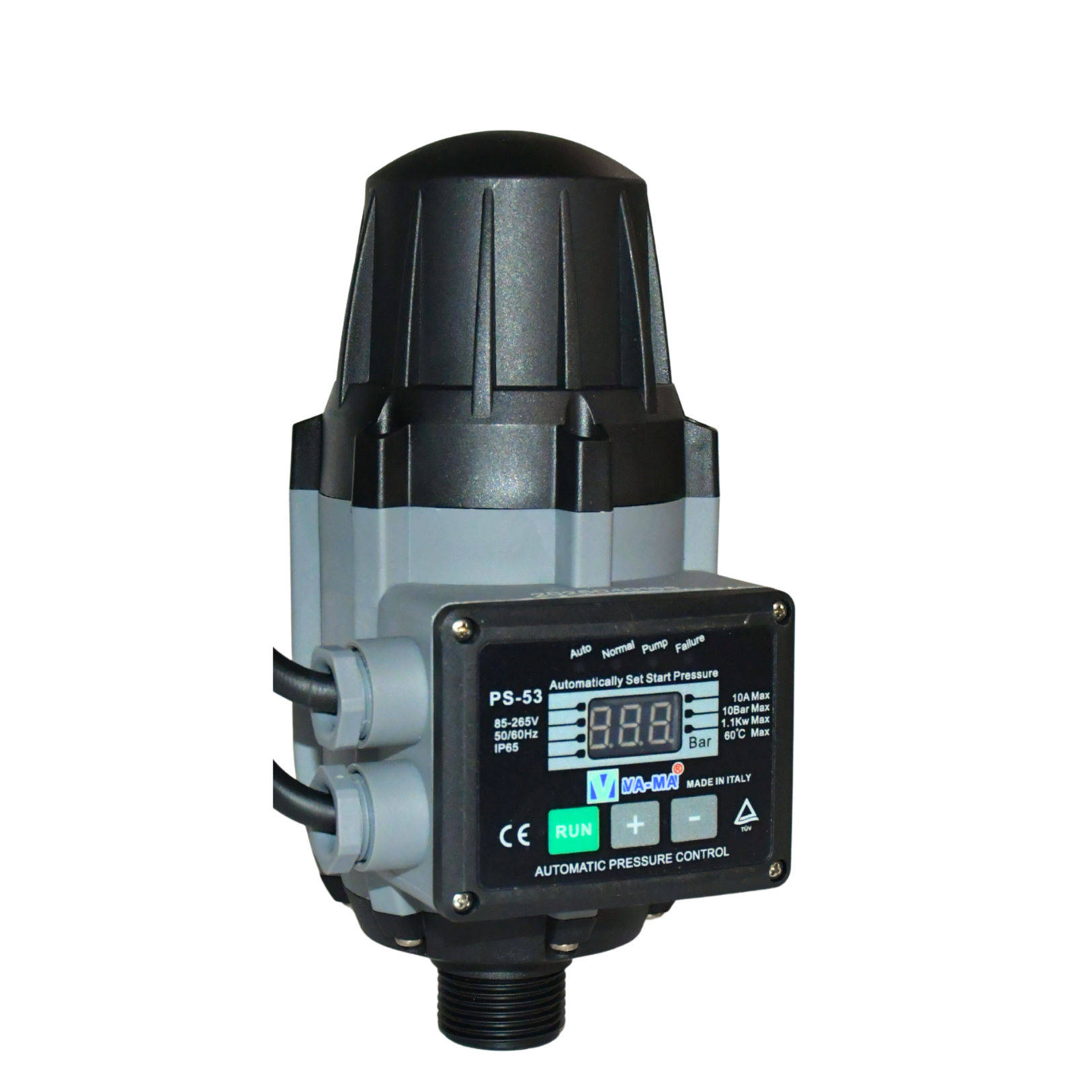

Pressure sensor with LED display for real-time monitoring
The controller automatically adjusts the starting pressure according to the pipe pressure and monitors the system in real time.
Higher pipe pressure increases the starting pressure and lower pressure decreases it automatically.
This prevents issues caused by incorrect manual settings.
Normal Mode
Manual starting pressure adjustment from 0.5 – 6.0 bar.
Wide adjustment range and easy operation.
