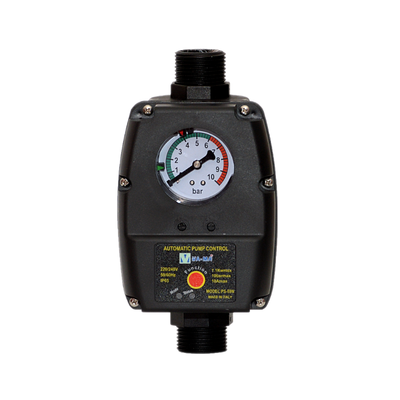

Automatic Pump Control PS-59
Stop and start the pump automatically. The controller protects the pump from water shortage and restarts it automatically when the power returns. Forced start included. Joint screw: G 1” male. When pressure falls (tap opened), the pump starts; when maximum pressure is reached (tap closed), the pump stops. Automatic restart after water shortage.
Main Features
- Automatic pump start and stop
- Water shortage protection
- Automatic restart after power failure
- Manual forced start
- Pressure-dependent start/stop control
- G 1” male joint screw
Technical Specifications
| Specification | Value |
|---|---|
| Starting Pressure | 1–6 bar (adjustable) |
| Stop Pressure | 2–10 bar (adjustable) |
| Min Differential Pressure | 1 bar |
| Max Differential Pressure | 7 bar |
| Rated Current | 10A |
| Max Allowable Pressure | 10 bar |
| Rated Voltage | 110V / 220V |
| Frequency | 50/60 Hz |
| Max Ambient Temperature | 40°C |
| Max Liquid Temperature | 60°C |
| Protection Degree | IP65 |
