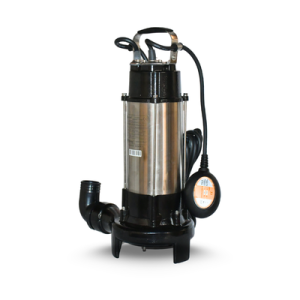

V Series Submersible Sewage Pump
V Series with cutting system (DF models) are high-speed submersible sewage pumps.
A rotating cutter at the inlet cuts long-fiber and firm debris to avoid impeller blockage.
Float switch controls start/stop automatically, and overload protection ensures safety.
Suitable for sanitation, factories, mines, and homes.
Applications
- Drain sewage in sanitation systems
- Factories and industrial sewage
- Mine and home drainage
Technical Specifications
| Specification | Value |
|---|---|
| Flow Rate | Up to 28 m³/hr |
| Head | Up to 12 m |
| Max Operating Depth | 5 m below water level |
| Max Solids Passage | Φ 10 mm |
| pH Value | 4 ~ 10 |
| Max Fluid Density | 1.2 × 10³ kg/m³ |
| Max Water Temp | 40 °C |
| Motor | Two-pole standard, 2900 rpm, Class F, IP68 |
| Power Supply | Single phase 220V/50Hz |
| Thermal Protection | Included (for single phase) |
Component Construction
| Component | Material |
|---|---|
| Pump Body | Cast Iron |
| Pump Bracket | Cast Iron |
| Impeller | Cast Iron |
| Radial Cutter | Cast Iron |
| Shredding Ring | Cast Iron |
| Pump Shaft | Stainless Steel |
| Mechanical Seal | Silicon/Silicon – Silicon/Carbon |
