Volute pump design with high performance, large flow, low noise, and flexible installation
A practical solution for spa circulation, hydro massage, and pool filtration

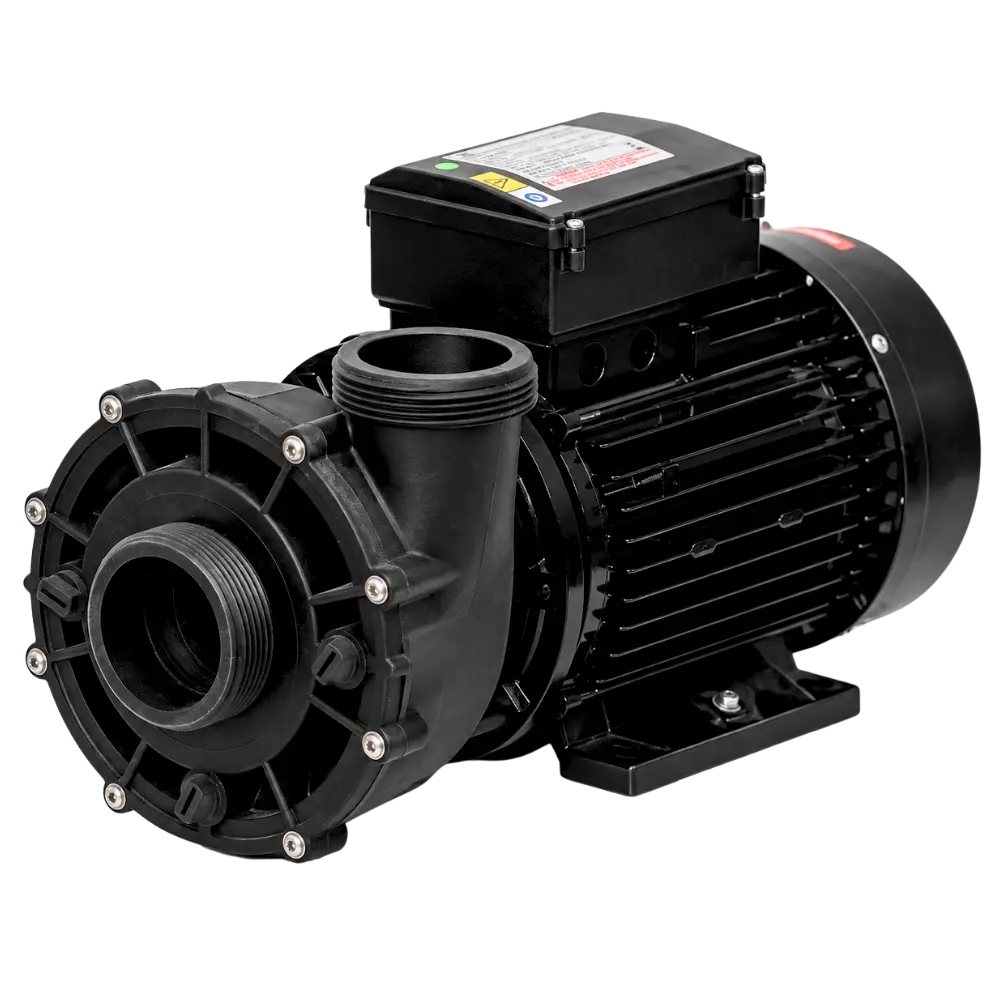

The VAMA LP Spa Pump Series is a preferred solution for spa pool applications, featuring a high-performance volute pump design developed to deliver large flow rates with low operating noise. The pump is equipped with 2-inch inlet and outlet connections, while the pump housing can be installed with a 90° flexible orientation, making pipework easier and providing greater installation flexibility. The liquid-contacting parts are manufactured from high-reinforced engineering techno-polymer, providing a durable and compact construction suitable for water circulation applications. The VAMA LP series is suitable for hydro massage tubes, spa system boosting, swimming pool circulation, and swimming pool filtration systems. With flow rates up to 38 m³/h and head up to 17 m, the LP series provides strong hydraulic performance for demanding spa and pool applications.
| Specification | Value |
|---|---|
| Product Series | VAMA LP |
| Pump Type | Spa Pump |
| Maximum Flow Rate | Up to 38 m³/h |
| Maximum Head | Up to 17 m |
| Pump Body | Reinforced techno-polymer |
| Pump Bracket | Aluminum |
| Impeller | Reinforced techno-polymer |
| Pump Shaft | Stainless Steel AISI 316 |
| Mechanical Seal | Graphite / Silicon |
| Motor | Two-pole induction motor |
| Motor Speed | 2900 rpm |
| Cooling | External cooling |
| Insulation Class | F |
| Protection Degree | IP55 |
| Electrical Supply | Single-phase 220V / 50Hz |
| Thermal Protection | Available |
| Operating Mode | Continuous Service S1 |
| Inlet and Outlet | 2 inch |
| Housing Installation | Flexible 90° installation |
High-reliability components compliant with European industrial standards.
| Component | Material |
|---|---|
| Pump Body | Reinforced techno-polymer |
| Pump Bracket | Aluminum |
| Impeller | Reinforced techno-polymer |
| Pump Shaft | AISI 316 Stainless Steel |
| Mechanical Seal | Graphite / Silicon |
| Liquid-Contacting Parts | High-reinforced engineering techno-polymer |
The VAMA LP series combines a high-performance volute hydraulic design with reinforced engineering materials for reliable spa and pool water circulation. The pump body and impeller are manufactured from reinforced techno-polymer, while the pump shaft uses AISI 316 stainless steel. The design also incorporates external motor cooling, Class F insulation, IP55 protection, thermal protection, and continuous S1 operation.
For product selection, technical assistance, installation support, and warranty inquiries, contact Tervina Egypt Group: Customer Service: 19301
Install the pump on a stable and properly supported surface. Ensure that the 2-inch inlet and outlet connections are correctly connected and securely sealed. Use the flexible 90° pump housing orientation where required to simplify pipe routing and installation. Before operation, inspect all connections for leaks and ensure the system is properly prepared. Regularly check the piping, mechanical seal, pump body, and filtration system.
