Volute pump design with high performance, large flow, low noise, and flexible installation
A reliable solution for spa circulation, filtration, hydro massage, and pool systems

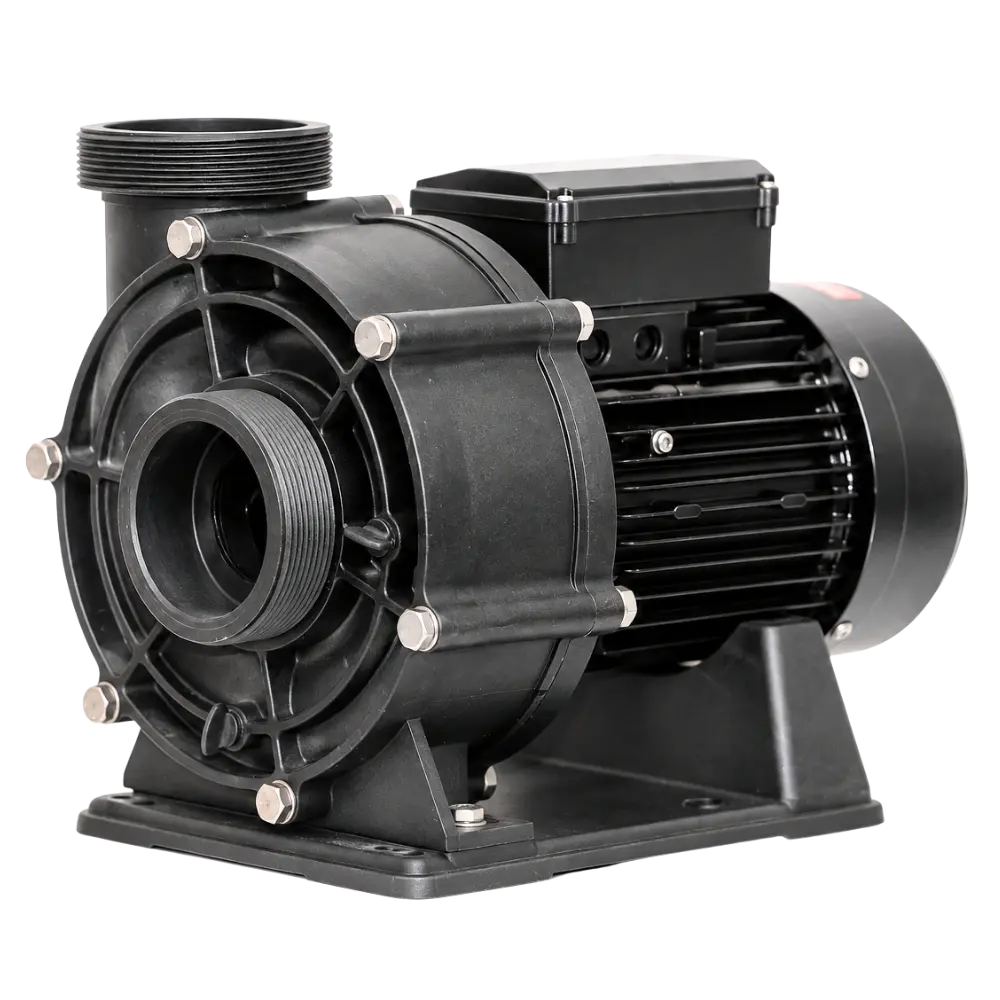

The VAMA WTB Spa Pool Pump Series is designed for spa pool filtration and circulation systems, providing high hydraulic performance for a wide range of water circulation applications. The pump casing features a volute design developed to provide high performance, large flow rates, and low operating noise. The pump housing also allows 90° flexible installation, making pipework easier and providing greater flexibility during installation. The liquid-contacting parts are manufactured from high-reinforced engineering techno-polymer, providing a durable construction suitable for water circulation applications. The VAMA WTB series is suitable for hydro massage tubes, spa system boosting, and swimming pool circulation or filtration systems. With flow rates up to 90 m³/h and head up to 18 m, the WTB series provides strong performance for demanding spa and swimming pool applications.
| Specification | Value |
|---|---|
| Product Series | VAMA WTB |
| Pump Type | Spa Pool Pump |
| Maximum Flow Rate | Up to 90 m³/h |
| Maximum Head | Up to 18 m |
| Pump Body | Reinforced techno-polymer |
| Pump Bracket | Aluminum |
| Impeller | Reinforced techno-polymer |
| Pump Shaft | Stainless Steel AISI 316 |
| Mechanical Seal | Graphite / Silicon |
| Motor | Two-pole induction motor |
| Motor Speed | 2900 rpm |
| Cooling | External cooling |
| Insulation Class | F |
| Protection Degree | IP55 |
| Single-Phase Supply | 220V / 50Hz |
| Three-Phase Supply | 380V / 50Hz |
| Thermal Protection | For single-phase version |
| Operating Mode | Continuous Service S1 |
| Pump Housing Installation | Flexible 90° installation |
High-reliability components compliant with European industrial standards.
| Component | Material |
|---|---|
| Pump Body | Reinforced techno-polymer |
| Pump Bracket | Aluminum |
| Impeller | Reinforced techno-polymer |
| Pump Shaft | AISI 316 Stainless Steel |
| Mechanical Seal | Graphite / Silicon |
| Liquid-Contacting Parts | High-reinforced engineering techno-polymer |
The VAMA WTB series combines a high-performance volute hydraulic design with reinforced engineering materials for spa and swimming pool water circulation and filtration. The reinforced techno-polymer components are used for liquid-contacting parts, while the stainless steel AISI 316 shaft supports dependable mechanical operation. The series also incorporates external motor cooling, Class F insulation, IP55 protection, thermal protection for single-phase versions, and continuous S1 operation.
For product selection, technical assistance, installation support, and warranty inquiries, contact Tervina Egypt Group: Customer Service: 19301
Install the pump on a stable and properly supported surface. Connect the pump to the piping system correctly and ensure that all connections are properly sealed before operation. Use the 90° flexible pump housing installation option where required to simplify pipe routing and improve installation flexibility. Before starting the pump, inspect the hydraulic and electrical connections and check for leaks. Regularly inspect the pump body, piping, mechanical seal, and filtration system. Maintain adequate ventilation around the motor to support proper external cooling.
