Reliable performance, compact construction, and easy connection for pool filtration systems
A preferred solution for swimming pool sand filter systems

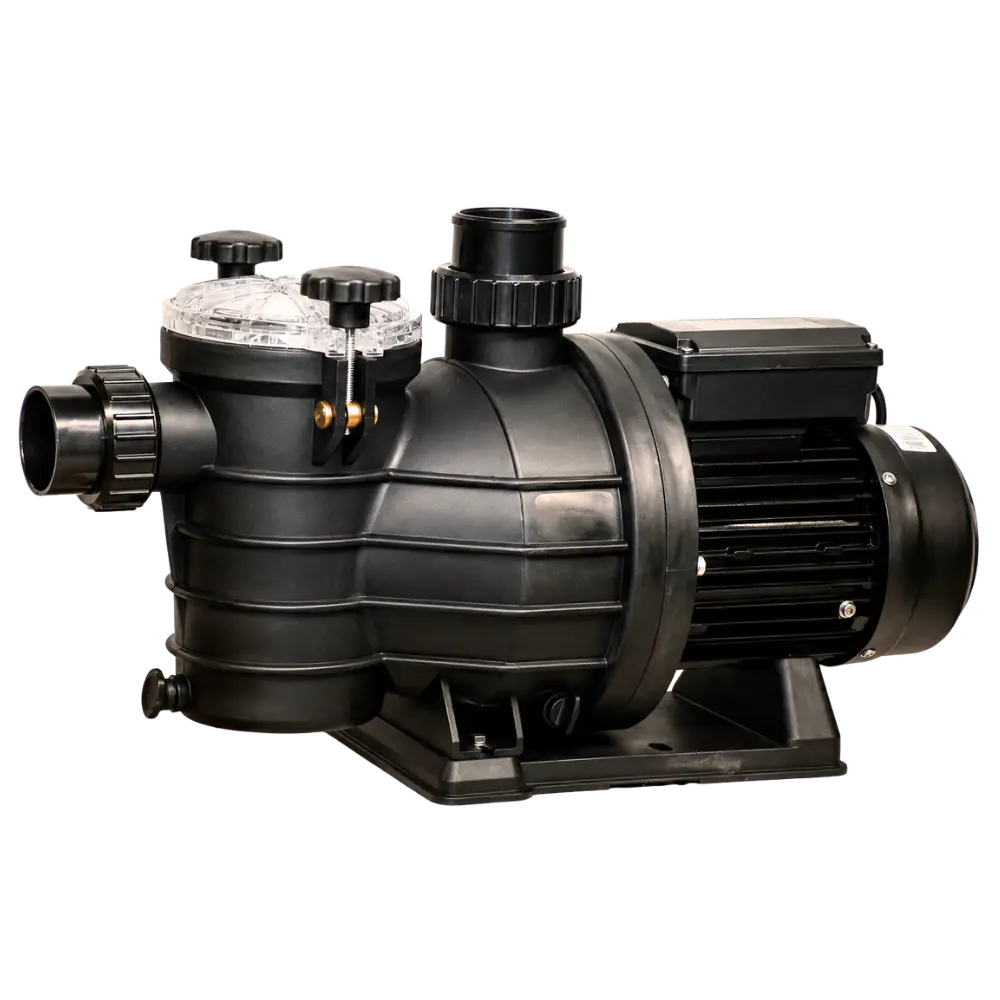

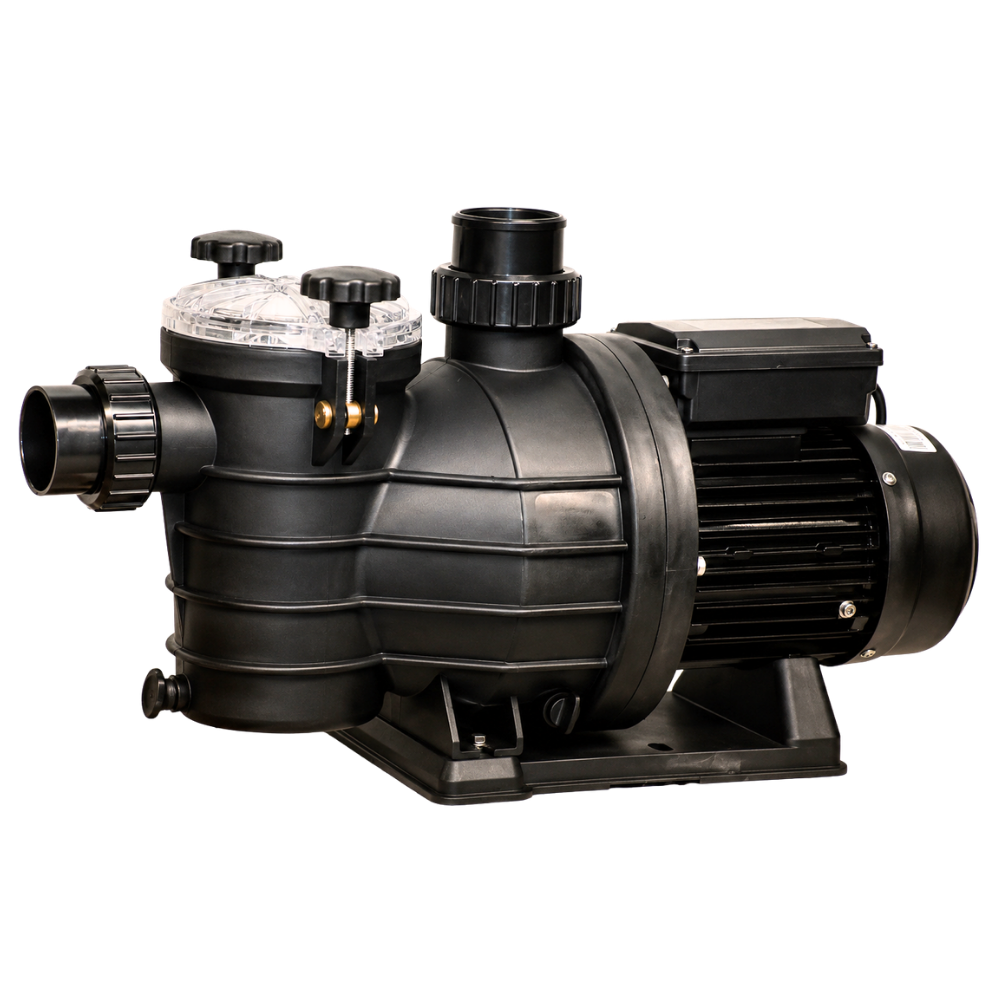

VAMA SBP Swimming Pool Pump Series is designed with a highly efficient diffuser and impeller structure to deliver strong hydraulic performance and reliable water circulation. The pump features inlet and outlet connections available with female or male threads for easy installation and connection to different piping systems. Water-contacting components are manufactured from high-reinforced engineering techno-polymer, providing a compact construction with good resistance to corrosion. The reinforced engineering plastic base is designed to reduce vibration and provide resistance against corrosion, making the SBP series a practical solution for swimming pool filtration and circulation applications. With flow rates up to 22 m³/h and head up to 17.5 m, the VAMA SBP series is particularly suitable for swimming pool sand filter systems and continuous water circulation.
| Specification | Value |
|---|---|
| Product Series | VAMA SBP |
| Pump Type | Swimming Pool Pump |
| Maximum Flow Rate | Up to 22 m³/h |
| Maximum Head | Up to 17.5 m |
| Pump Body | Reinforced techno-polymer |
| Pump Bracket | Aluminum |
| Diffuser | Reinforced techno-polymer |
| Impeller | Reinforced techno-polymer |
| Pump Shaft | Stainless Steel AISI 316 |
| Mechanical Seal | Graphite / Silicon |
| Motor | Two-pole induction motor |
| Motor Speed | 2900 rpm |
| Cooling | External cooling |
| Insulation Class | F |
| Protection Degree | IP55 |
| Electrical Supply | Single-phase 220V / 50Hz |
| Thermal Protection | Available |
| Operating Mode | Continuous Service S1 |
| Connections | Female or male threaded inlet and outlet |
High-reliability components compliant with European industrial standards.
| Component | Material |
|---|---|
| Pump Body | Reinforced techno-polymer |
| Pump Bracket | Aluminum |
| Diffuser | Reinforced techno-polymer |
| Impeller | Reinforced techno-polymer |
| Pump Shaft | AISI 316 Stainless Steel |
| Mechanical Seal | Graphite / Silicon |
| Base | High-reinforced engineering plastic |
The VAMA SBP series is designed around a durable and efficient construction concept, combining reinforced engineering materials with stainless steel components and a protected electric motor. The hydraulic components are engineered to provide efficient water movement, while the reinforced base contributes to vibration resistance and durability. The use of AISI 316 stainless steel for the pump shaft supports reliable operation in water circulation applications.
For product selection, installation guidance, technical assistance, and warranty-related inquiries, contact Tervina Egypt Group customer service: Customer Service: 19301
Install the pump on a stable and properly supported base and ensure correct alignment of the inlet and outlet connections. Make sure the piping system is properly connected and sealed before operation. The pump should be operated within the specified temperature and performance limits. Regularly inspect the pump, connections, mechanical seal, and filtration system, and keep the surrounding area clean and well ventilated.
