Efficient structure, excellent corrosion resistance, long service life, and reliable performance
A durable solution for swimming pool filtration and seawater circulation

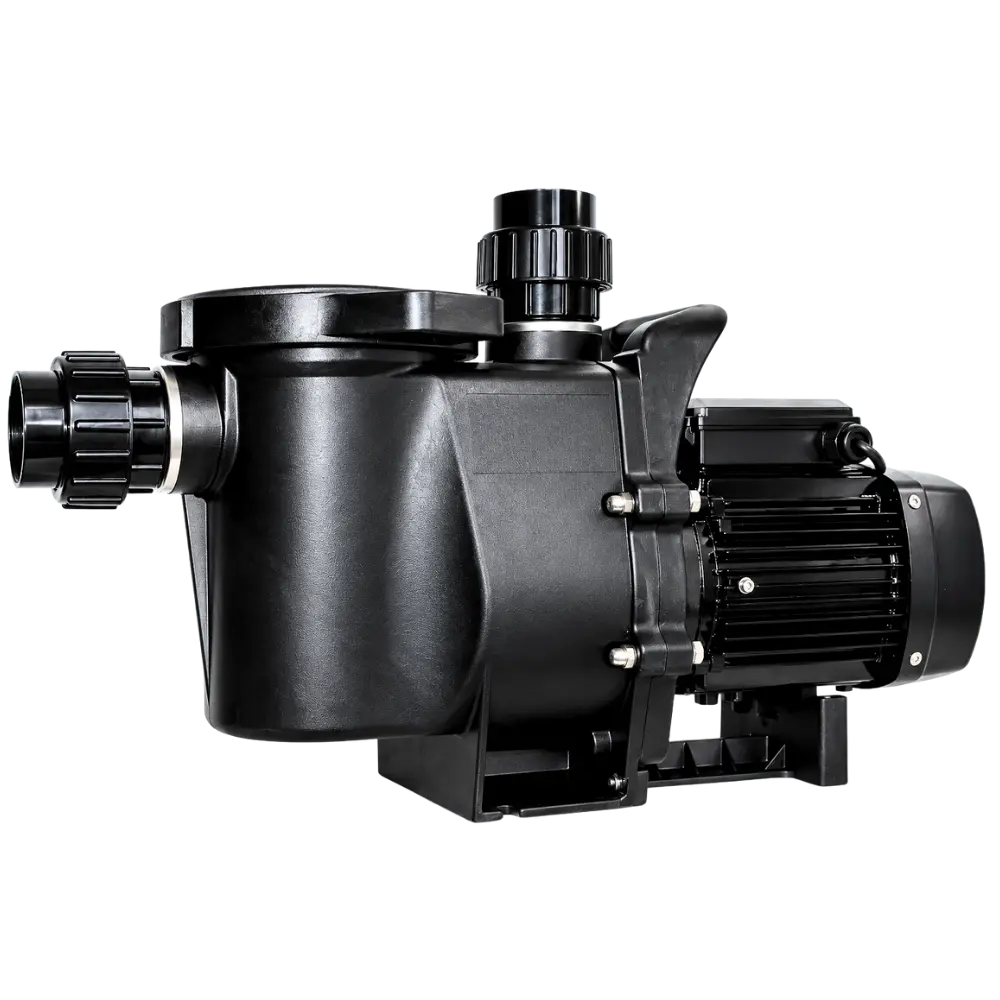

The VAMA SWP Swimming Pool Pump Series features a highly efficient structural design for the pump body, diffuser, and impeller to deliver high performance in swimming pool water circulation and filtration applications. The inlet and outlet are available with female or male threaded connections for easy installation and connection to different piping systems. The liquid-contacting parts are manufactured from high-reinforced engineering techno-polymer with a compact structure designed to withstand the impact caused by water flow. The high-reinforced engineering plastic base provides vibration resistance and corrosion resistance, supporting stable and reliable pump operation. The VAMA SWP series is a preferred solution for swimming pool sand filter systems and is designed for use with seawater, offering excellent corrosion resistance and long service life. With flow rates up to 32 m³/h and head up to 22 m, the SWP series is suitable for a wide range of pool filtration and circulation applications.
| Specification | Value |
|---|---|
| Product Series | VAMA SWP |
| Pump Type | Swimming Pool Pump |
| Maximum Flow Rate | Up to 32 m³/h |
| Maximum Head | Up to 22 m |
| Maximum Water Temperature | 50°C |
| Maximum Ambient Temperature | 40°C |
| Pump Body | Reinforced techno-polymer |
| Pump Bracket | Aluminum |
| Diffuser | Reinforced techno-polymer |
| Impeller | Reinforced techno-polymer |
| Pump Shaft | Stainless Steel AISI 316 |
| Mechanical Seal | Graphite / Silicon |
| Motor | Two-pole induction motor |
| Motor Speed | 2900 rpm |
| Cooling | External cooling |
| Insulation Class | F |
| Protection Degree | IP55 |
| Electrical Supply | Single-phase 220V / 50Hz |
| Thermal Protection | Available |
| Operating Mode | Continuous Service S1 |
| Inlet and Outlet | Female or male threaded connections |
| Application | Seawater and swimming pool sand filter systems |
High-reliability components compliant with European industrial standards.
| Component | Material |
|---|---|
| Pump Body | Reinforced techno-polymer |
| Pump Bracket | Aluminum |
| Diffuser | Reinforced techno-polymer |
| Impeller | Reinforced techno-polymer |
| Pump Shaft | AISI 316 Stainless Steel |
| Mechanical Seal | Graphite / Silicon |
| Base | High-reinforced engineering plastic |
The VAMA SWP series is designed with high-efficiency hydraulic components and reinforced engineering materials for reliable swimming pool water circulation and filtration. The liquid-contacting parts use reinforced techno-polymer, while the reinforced engineering plastic base provides vibration and corrosion resistance. The AISI 316 stainless steel pump shaft, external motor cooling, Class F insulation, IP55 protection, thermal protection, and continuous S1 service contribute to dependable operation. The product specifications also identify the SWP series as suitable for seawater, offering excellent corrosion resistance and long service life.
For product selection, technical assistance, installation support, and warranty inquiries, contact Tervina Egypt Group: Customer Service: 19301
Install the pump on a stable and properly supported base. Connect the inlet and outlet using the appropriate female or male threaded connections and ensure all piping connections are properly sealed. Before operation, inspect the complete hydraulic and electrical system and check for leaks. For seawater applications, follow the specified operating conditions and perform regular inspection of the pump, connections, mechanical seal, and filtration system. Maintain adequate ventilation around the motor to support external cooling.
