Automatic Pump Start & Stop with Reliable Pressure Control
Reliable Automatic Control for High-Power Water Pump Systems

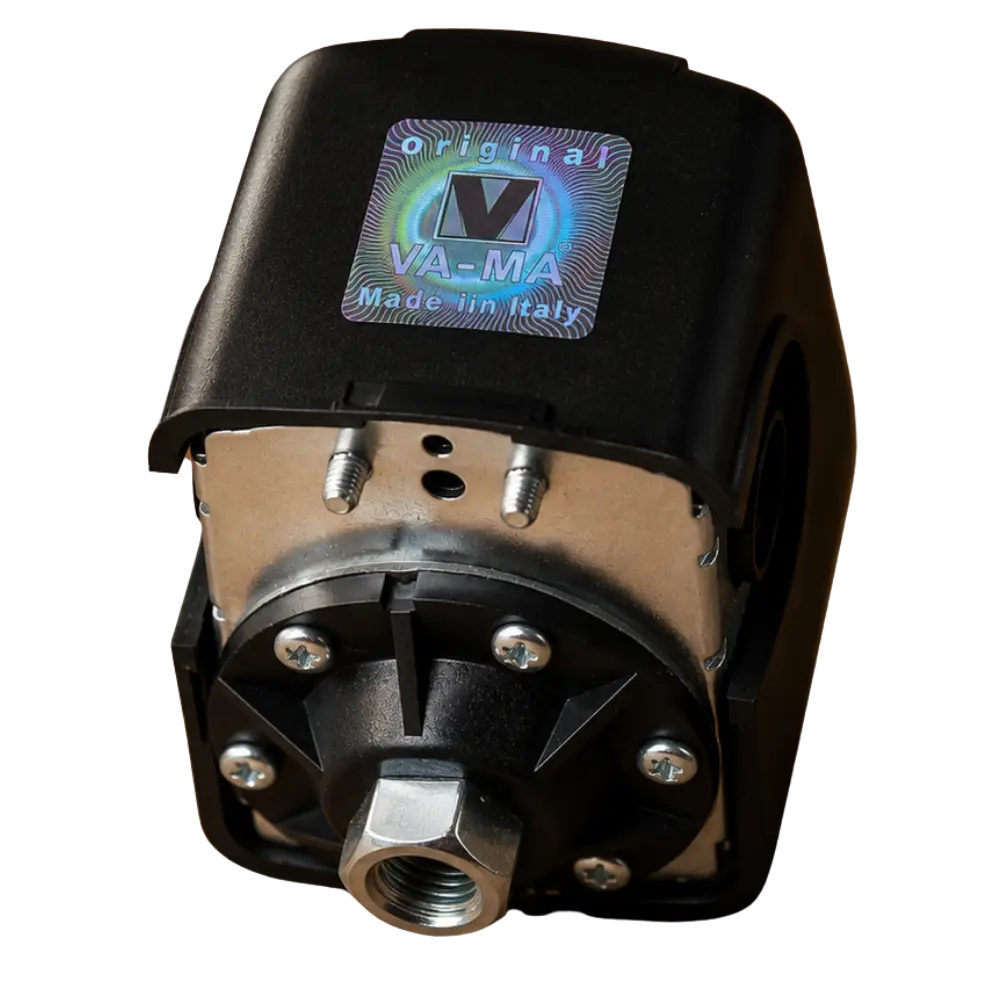

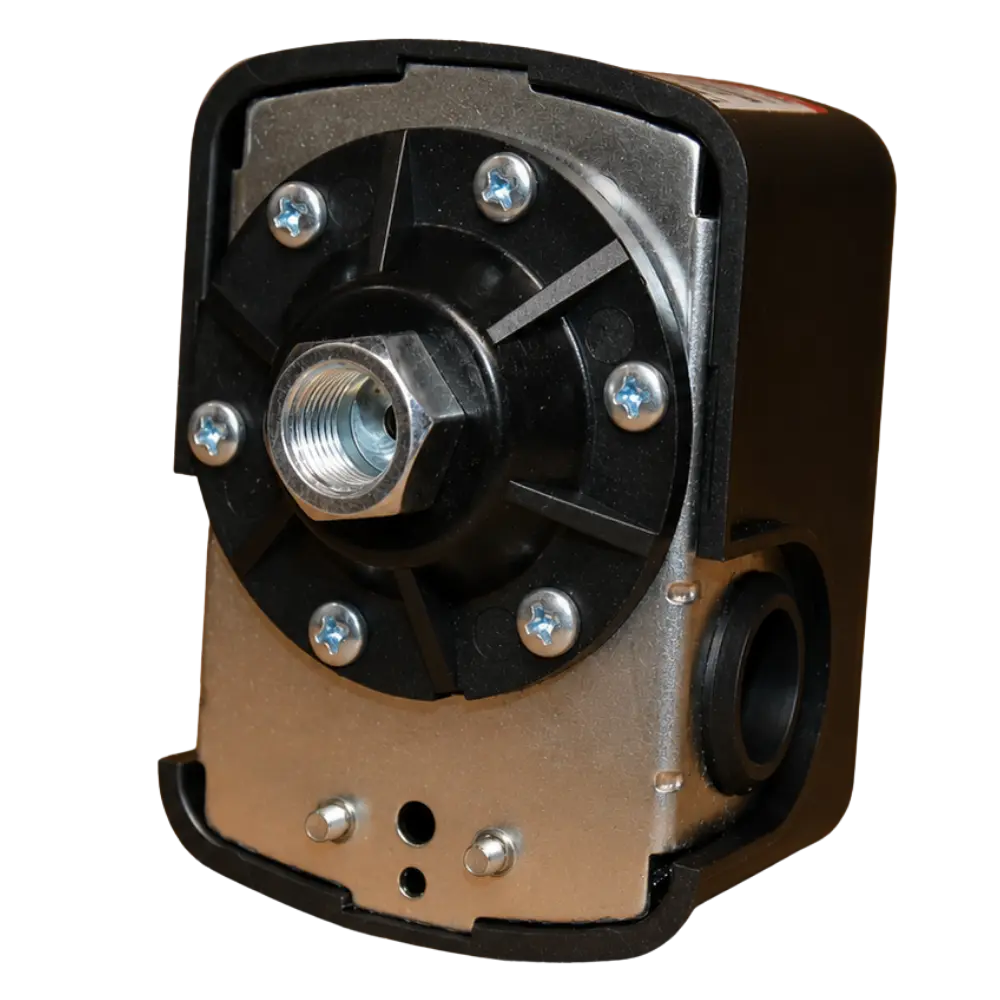

VAMA PS-02B is an Italian high pressure automatic pressure controller designed to automatically start and stop water pumps. It features a factory pressure setting from 3 to 5.5 bar and supports a maximum pressure of up to 10 bar. The controller operates at 220V / 50Hz and is suitable for motors from 1 HP to 3 HP with a maximum current of 12 A. It features a 1/4-inch female threaded connection and supports water temperatures up to 60°C, with an IP54 protection rating.
| Specification | Value |
|---|---|
| Product Name | VAMA PS-02B High Pressure Automatic Pressure Controller |
| Model | PS-02B |
| Country of Manufacture | Italy |
| Product Type | High Pressure Automatic Pressure Controller |
| Function | Automatic Pump Start and Stop |
| Factory Pressure Setting | 3–5.5 bar |
| Maximum Pressure | 10 bar |
| Threaded Connection | 1/4 inch Female |
| Maximum Water Temperature | 60°C |
| Compatible Motor Power | 1–3 HP |
| Maximum Current | 12 A |
| Voltage | 220V / 50Hz |
| Protection Rating | IP54 |
High-reliability components compliant with European industrial standards.
| Component | Material |
|---|---|
| Threaded Connection | 1/4 inch Female |
| Controller | High Pressure Automatic Pressure Controller |
| Housing | IP54 Protected |
VAMA PS-02B is an Italian high pressure automatic pressure controller designed to control the start and stop of water pumps. It provides a factory pressure setting from 3 to 5.5 bar and a maximum pressure of up to 10 bar. The controller supports motors from 1 HP to 3 HP with a maximum current of 12 A and operates at 220V / 50Hz with IP54 protection.
Technical Support Tervina provides technical support to help customers select the appropriate VAMA PS-02B controller according to motor power, pressure requirements, current rating, and installation conditions.
The VAMA PS-02B should be installed by a qualified technician and matched with a compatible water pump. It supports motors from 1 HP to 3 HP with a maximum current of 12 A and operates at 220V / 50Hz. Make sure the 1/4-inch female threaded connection is properly secured and that all electrical connections are safe. Adjust the operating pressure according to the requirements of the water system. Regular inspection is recommended, and the power supply must be disconnected before installation, inspection, or maintenance.
