For Storing Pressurized Water and Supporting Automatic Pump Systems
Reliable Pressure Storage for Water Pump Systems

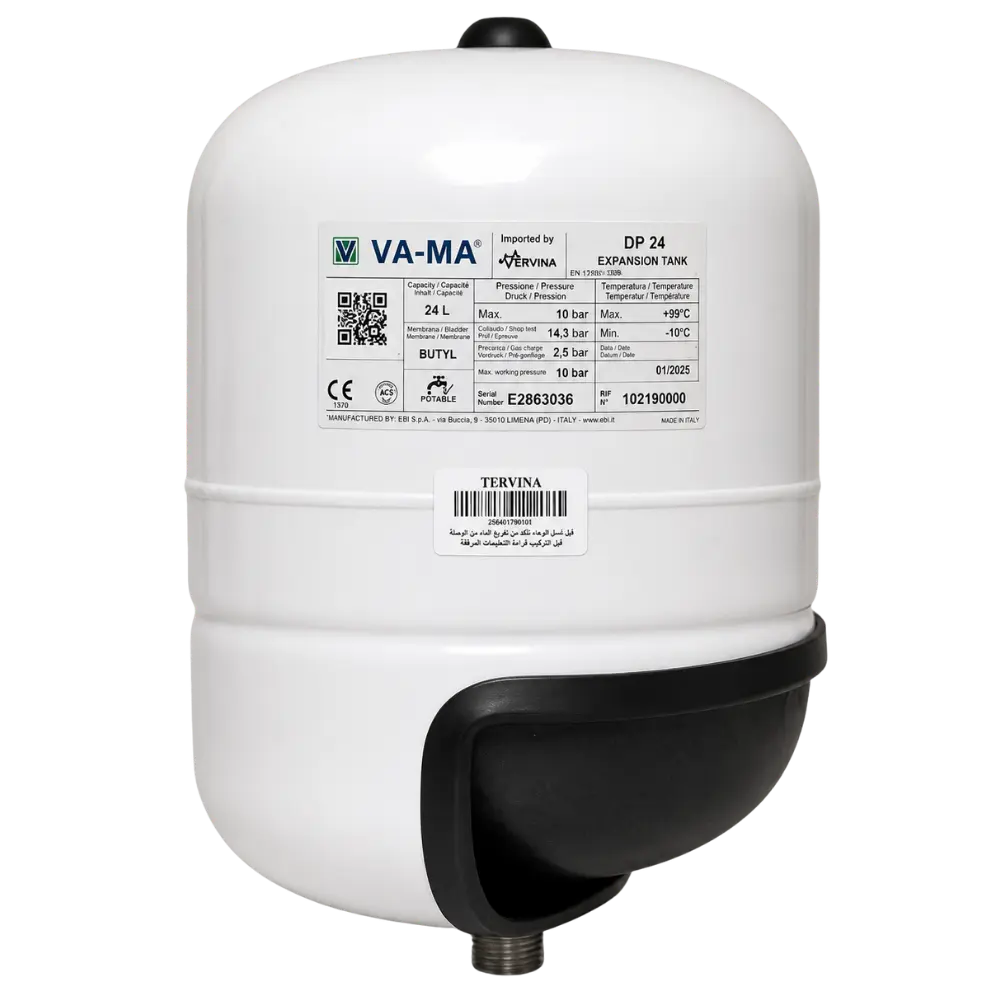

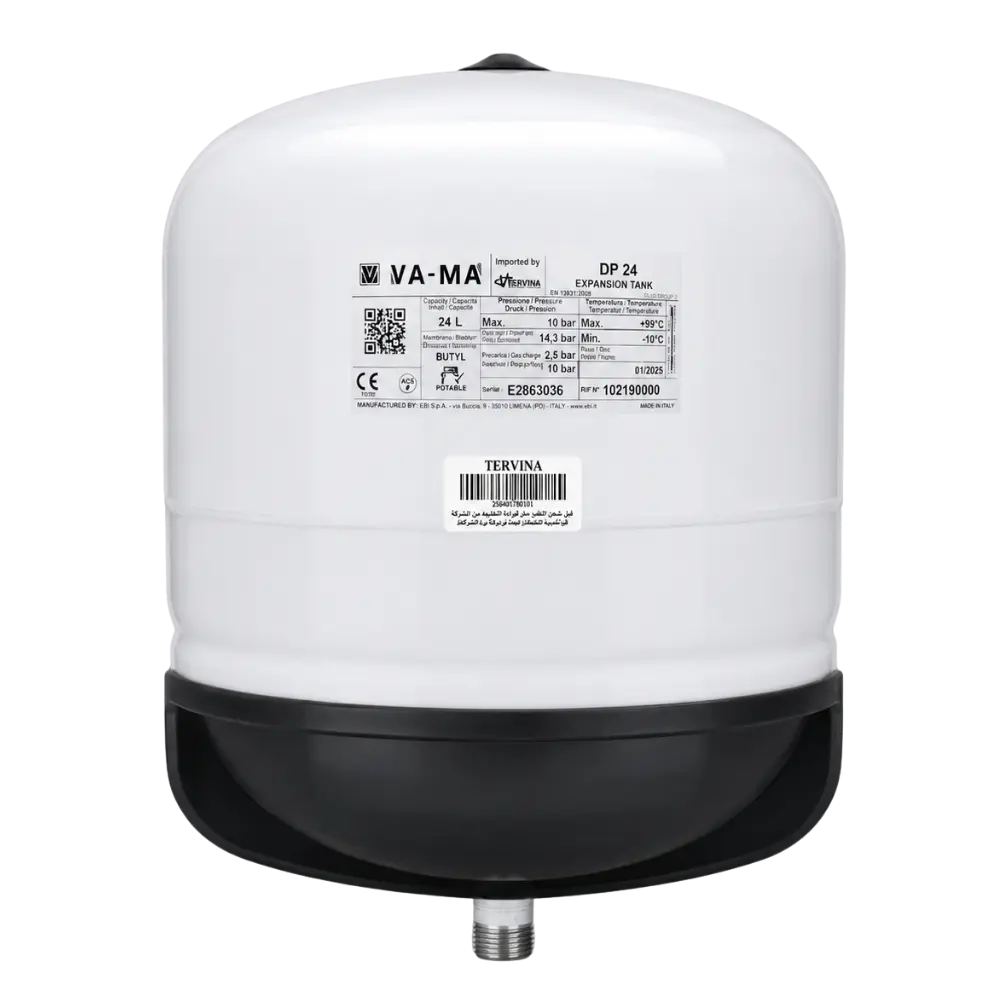

VAMA Tubeless 24 Liter is an Italian pressure tank designed to be installed on water pump systems. It stores a quantity of pressurized water and supplies water to the pipes when the automatic controller stops the pump. The tank is manufactured from high-quality steel and is designed to operate under different external weather conditions, including heat, cold, and humidity, with an external temperature range from -10°C to 99°C. It features a copper air valve with an O-ring sealing system to help maintain air pressure, a 1-inch stainless steel 304 threaded connection, and a fully insulated water-contact section made from natural rubber that complies with European specifications. The internal bladder is pressurized to 2.5 bar, and the product includes an 18-month replacement service.
| Specification | Value |
|---|---|
| Product Name | VAMA Tubeless 24 Liter Pressure Tank |
| Model | Tubeless |
| Country of Manufacture | Italy |
| Tank Capacity | 24 Liter |
| Body | High-Quality Steel |
| External Temperature Range | -10°C to 99°C |
| Weather Conditions | Heat, Cold & Humidity |
| Air Valve | Copper |
| O-Ring Seal | Included |
| Threaded Connection | Stainless Steel 304 |
| Thread Size | 1 inch |
| Water-Contact Section | Fully Insulated Natural Rubber |
| Natural Rubber | Complies with European Specifications |
| Internal Bladder Pressure | 2.5 bar |
| Replacement Service | 18 Months |
High-reliability components compliant with European industrial standards.
| Component | Material |
|---|---|
| Tank Body | High-Quality Steel |
| Air Valve | Copper |
| O-Ring Seal | Sealing ring for maintaining air pressure |
| Threaded Connection | Stainless Steel 304 |
| Internal Bladder | Tubeless Natural Rubber |
| Water-Contact Section | Fully insulated natural rubber |
VAMA Tubeless 24 Liter is an Italian pressure tank designed for use with water pump systems. It combines a high-quality steel body with a copper air valve, O-ring sealing system, 1-inch stainless steel 304 threaded connection, and a Tubeless internal bladder manufactured from natural rubber. The water-contact section is fully insulated with natural rubber that complies with European specifications. The tank is designed to operate in different external weather conditions, including heat, cold, and humidity, within the specified temperature range.
Technical Support Tervina provides technical support to help customers select and install the appropriate VAMA Tubeless 24 Liter pressure tank according to their water pump system and application requirements. Replacement Service The VAMA Tubeless 24 Liter pressure tank includes an 18-month replacement service. Service Activation To activate the replacement service, contact Tervina Customer Service at 19301.
The VAMA Tubeless 24 Liter pressure tank should be installed as part of a suitable water pump pressure system. Make sure the threaded connections are properly secured before operation and verify that the system is suitable for the tank specifications. The internal bladder pressure is specified at 2.5 bar. Regularly inspect the tank, air valve, O-ring seal, threaded connection, and water connections for leakage or damage. Isolate the system and release pressure before carrying out inspection or maintenance.
