Automatic Pump Start & Stop with Digital Pressure Control
Smart and Precise Control for Water Pump Pressure

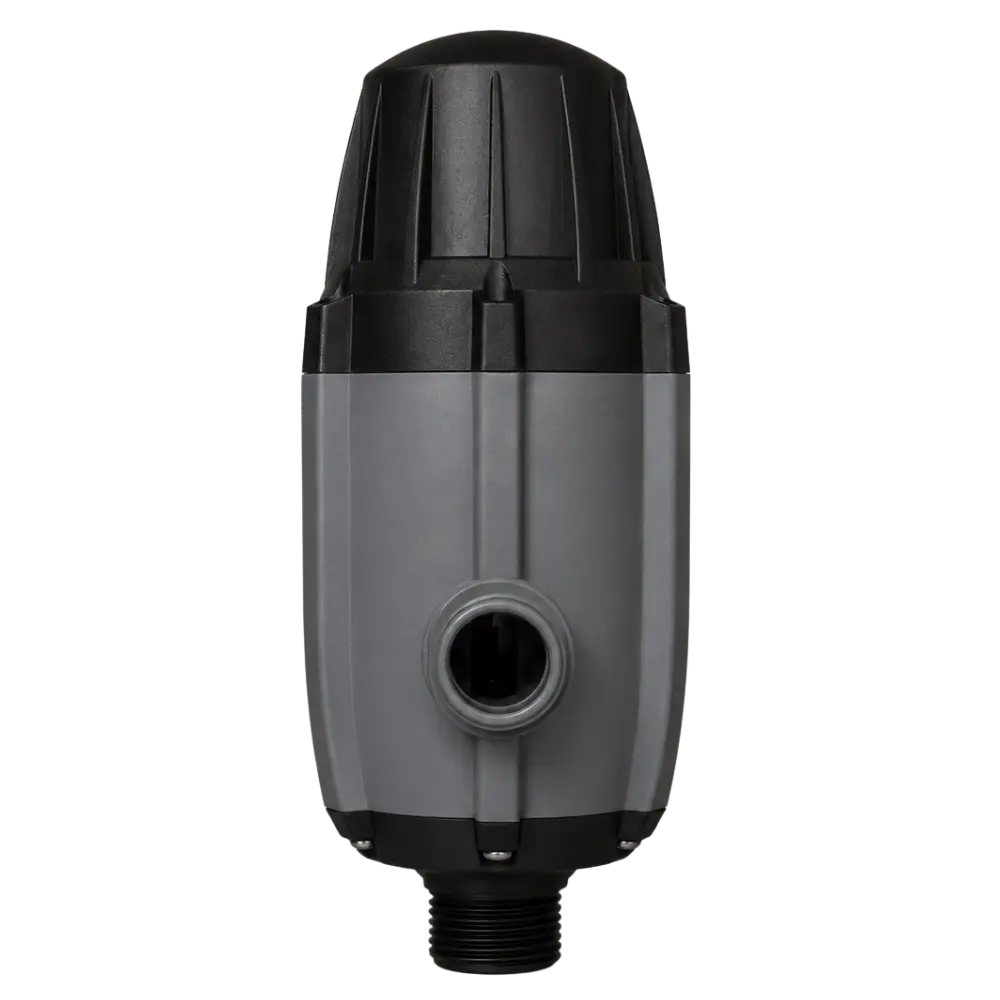

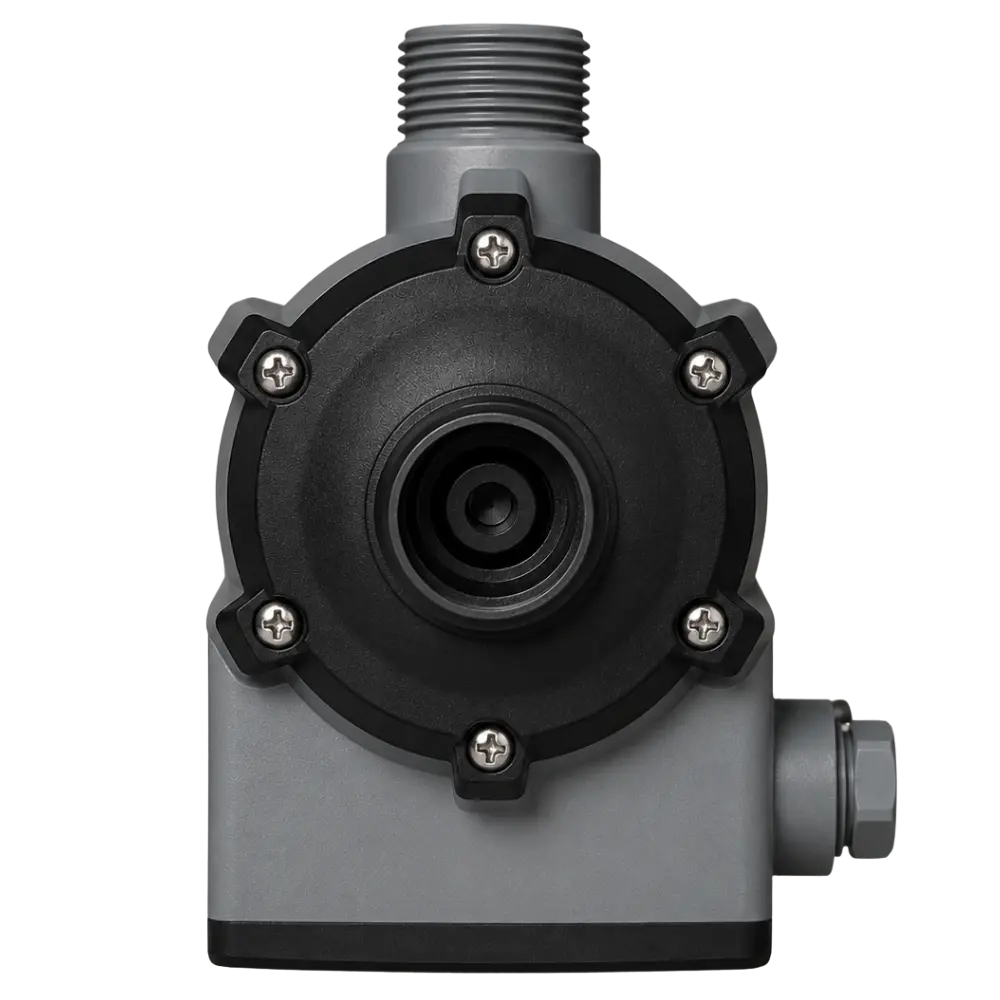

VAMA PS-53 Digital is an Italian automatic pressure controller designed to control the automatic start and stop of water pumps. It can be installed on the pump as an alternative to a traditional pressure tank and provides motor protection against burn-out when the water supply is interrupted. The unit features a digital pressure display, overpressure protection, an integrated check valve, a copper flow sensor, a timer, a self-search function, and a test cable. It operates at 220V / 50Hz and supports an operating pressure range from 0.5 to 10 bar, with a maximum pressure of 10 bar. The PS-53 also provides two operating modes: manual mode for adjusting the operating pressure and automatic mode for controlling the operating pressure according to the actual pressure.
| Specification | Value |
|---|---|
| Product Name | VAMA PS-53 Digital Automatic Pressure Controller |
| Model | PS-53 |
| Country of Manufacture | Italy |
| Product Type | Digital Automatic Pressure Controller |
| Inlet | Side Inlet |
| Outlet | Side Outlet |
| Operating Pressure | 0.5–10 bar |
| Maximum Pressure | 10 bar |
| Check Valve | Included |
| Flow Sensor | Copper |
| Maximum Temperature | 60°C |
| Protection Rating | IP65 |
| Digital Pressure Display | Included |
| Pressure Indicator | Included |
| Timer | Included |
| Self-Search Function | Included |
| Test Cable | Included |
| Voltage | 220V / 50Hz |
| Overpressure Protection | Included |
| Operating Modes | Manual + Automatic |
| Manual Mode | Operating pressure adjustment |
| Automatic Mode | Pressure control according to actual pressure |
| High-Floor Adjustment | Supported |
| Compatible Pump Power | 0.5–1.5 HP |
| Maximum Current | 10 A |
High-reliability components compliant with European industrial standards.
| Component | Material |
|---|---|
| Flow Sensor | Copper |
| Check Valve | Integrated |
| Digital Pressure Display | Integrated |
| Pressure Indicator | Integrated |
| Timer | Built-in |
| Self-Search Function | Integrated |
| Test Cable | Included |
| Housing | IP65 Protected Housing |
VAMA PS-53 Digital is an Italian automatic pressure controller designed for reliable water pump control. It combines automatic start/stop control with digital pressure monitoring, an integrated check valve, copper flow sensor, timer, self-search function, and overpressure protection. The IP65 protection rating and motor protection during water interruption provide additional system protection for domestic and high-floor water pressure applications.
Tervina provides technical support to help customers select the appropriate VAMA PS-53 Digital controller according to pump power, system requirements, pressure conditions, and installation needs.
The VAMA PS-53 Digital should be installed on the water system to automatically control the start and stop of the water pump. Make sure the controller is compatible with the pump power, supporting pumps from 0.5 HP to 1.5 HP with a maximum current of 10 A. The electrical supply should be 220V / 50Hz. Secure all water and electrical connections properly and adjust the operating pressure according to the requirements of the system. The controller can be adjusted for high-floor applications. Regular inspection of the controller and connections is recommended, and the electrical supply must be disconnected before maintenance.
