Automatic Pump Start & Stop with Motor Protection During Water Interruption
Reliable High-Pressure Control for Powerful Water Pump Systems

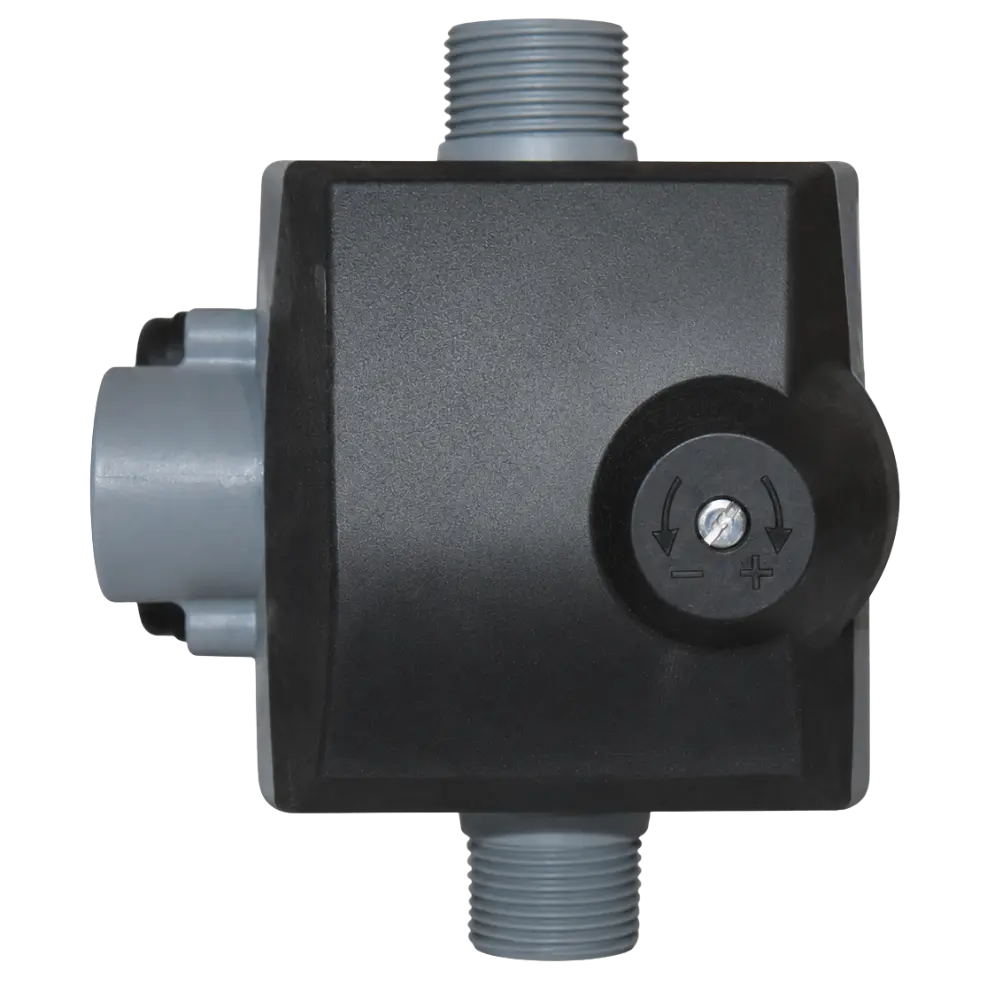

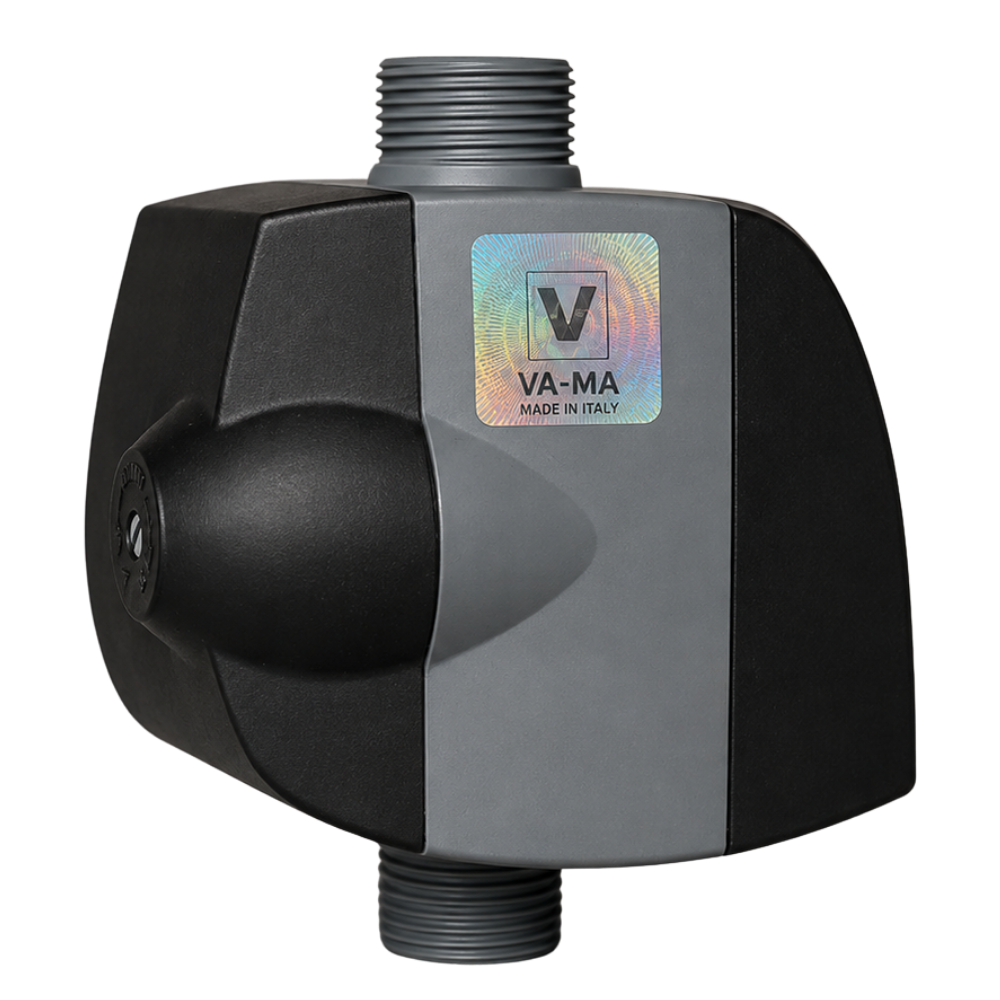

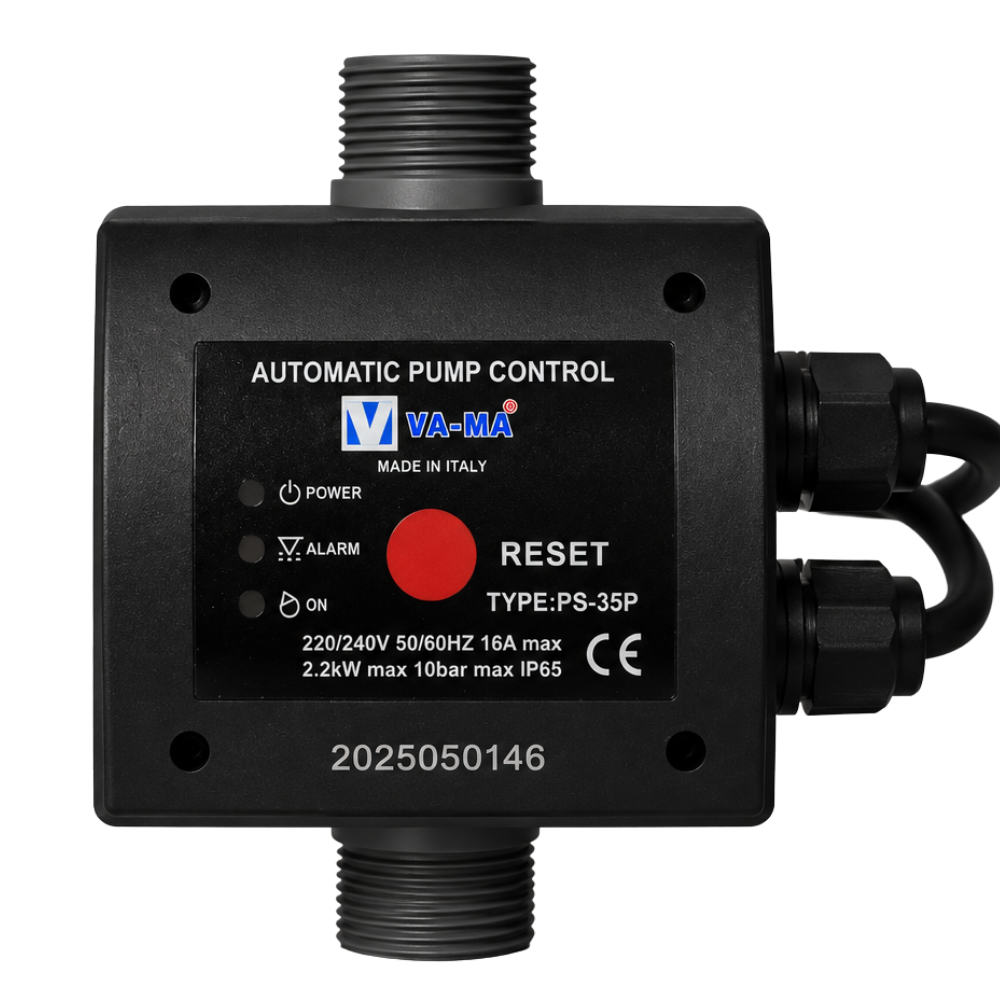

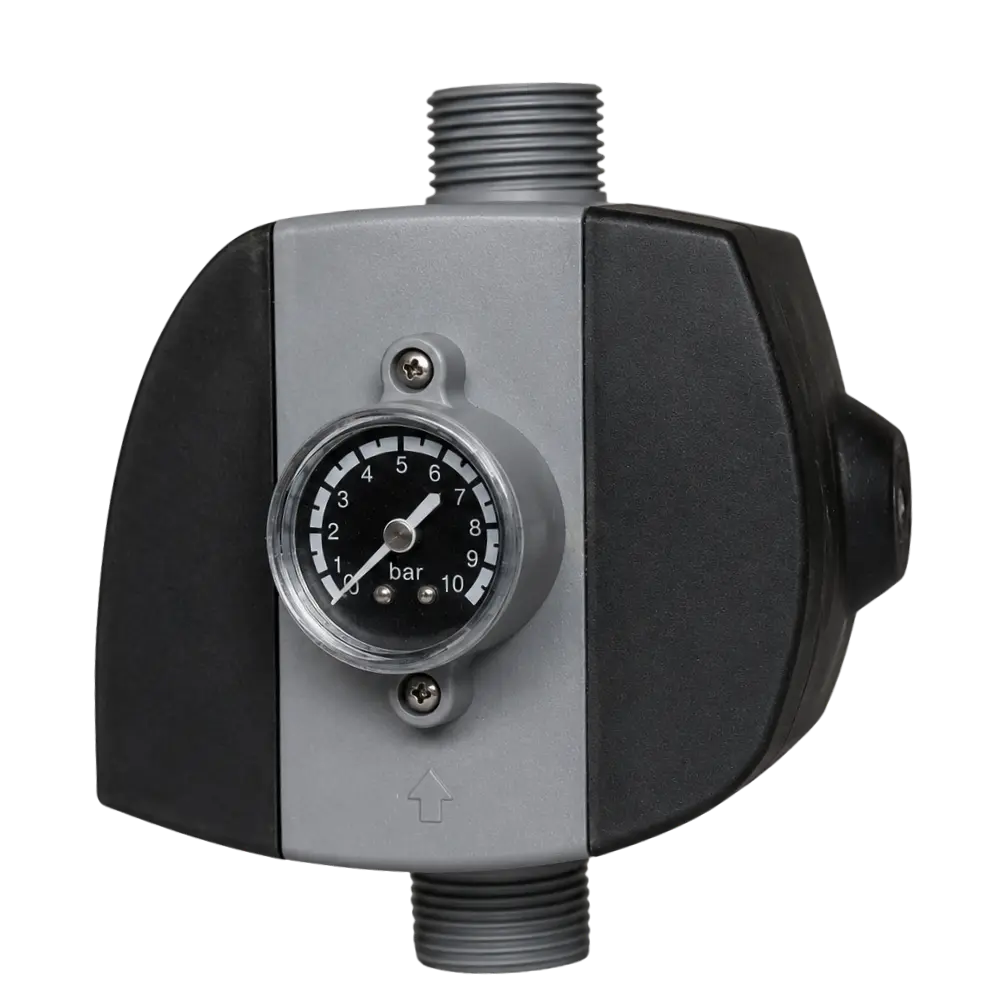

VAMA PS-35P is an Italian high pressure automatic pressure controller designed to control the automatic start and stop of water pumps. It can be installed on the pump as an alternative to a traditional pressure tank and provides motor protection against burn-out when the water supply is interrupted. The controller operates with a pressure range of 1.5–3 bar and supports a maximum pressure of 10 bar, with a maximum current of 16 A. It features IP65 protection, a maximum operating temperature of 60°C, two test cables, 1-inch suction and discharge connections, and an insulated sensor designed for heavy-duty operation. The PS-35P is suitable for pumps from 1.5 HP to 3 HP and can be adjusted for high-floor applications.
| Specification | Value |
|---|---|
| Product Name | VAMA PS-35P High Pressure Automatic Controller |
| Model | PS-35P |
| Country of Manufacture | Italy |
| Product Type | High Pressure Automatic Pressure Controller |
| Operating Pressure | 1.5–3 bar |
| Maximum Pressure | 10 bar |
| Maximum Temperature | 60°C |
| Protection Rating | IP65 |
| Test Cables | 2 |
| Suction Connection | 1 inch |
| Discharge Connection | 1 inch |
| Sensor | Insulated Heavy-Duty Sensor |
| Compatible Pump Power | 1.5–3 HP |
| Maximum Current | 16 A |
| Voltage | 220V |
| High-Floor Adjustment | Supported |
High-reliability components compliant with European industrial standards.
| Component | Material |
|---|---|
| Sensor | Insulated Heavy-Duty Sensor |
| Test Cables | 2 |
| Suction Connection | 1 inch |
| Discharge Connection | 1 inch |
| Housing | IP65 Protected Housing |
VAMA PS-35P is an Italian high pressure automatic controller designed for reliable water pump control. It combines automatic start/stop operation with motor protection during water interruption, IP65 protection, an insulated heavy-duty sensor, and support for pumps from 1.5 HP to 3 HP with a maximum current of 16 A. The controller is also adjustable for high-floor applications.
Tervina provides technical support to help customers select the appropriate VAMA PS-35P controller according to pump power, current requirements, operating pressure, and installation conditions.
The VAMA PS-35P should be installed on the water system to automatically control the start and stop of the water pump. Make sure the controller is compatible with the pump rating, supporting pumps from 1.5 HP to 3 HP with a maximum current of 16 A. The electrical supply should be 220V. Secure the 1-inch suction and discharge connections properly and install the unit according to the requirements of the water system. The controller can be adjusted for high-floor applications. Regular inspection of the water and electrical connections is recommended, and the power supply must be disconnected before maintenance.
