Automatic Pump Start & Stop with Protection During Water Interruption
Reliable Automatic Control for Water Pump Systems

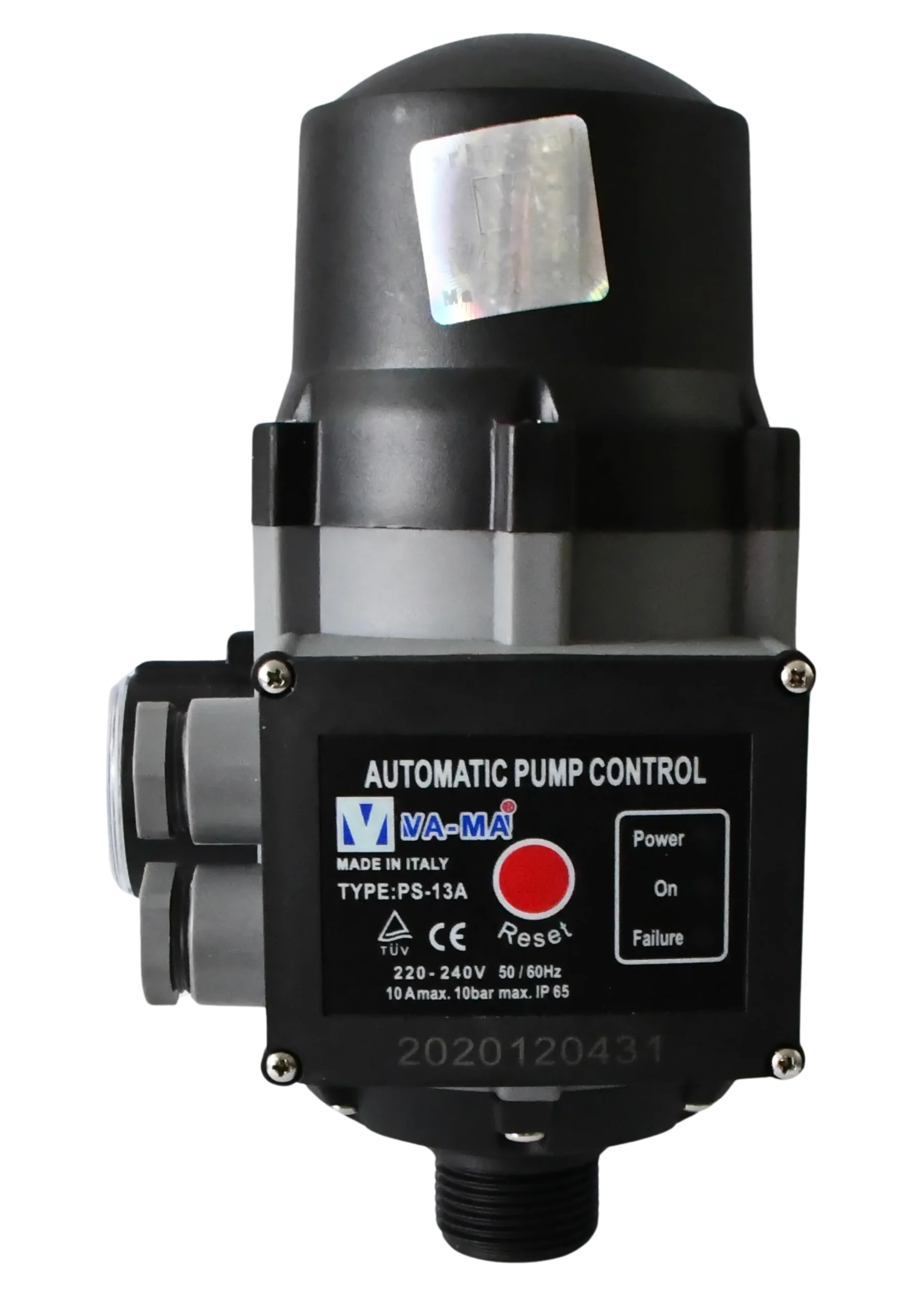

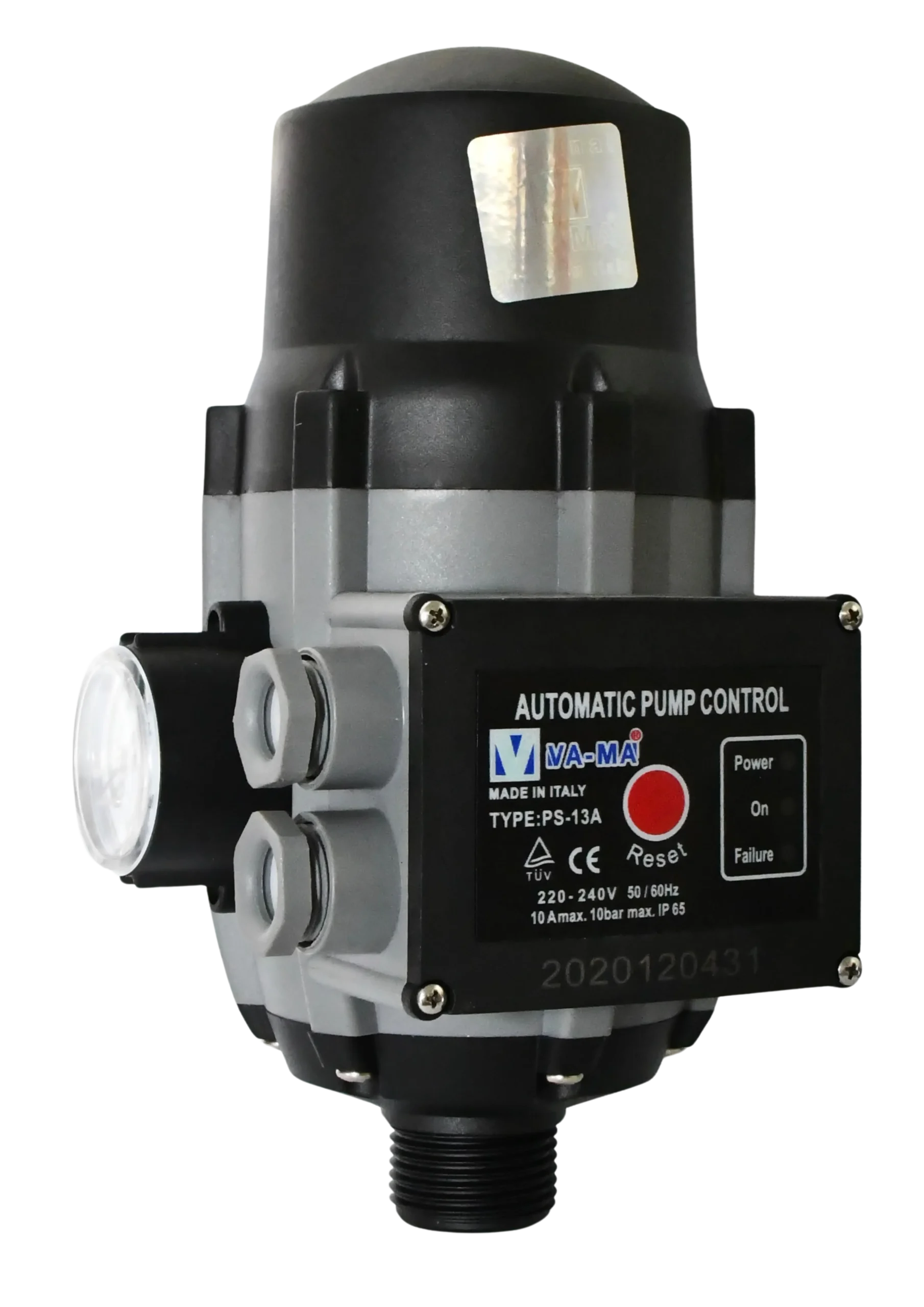

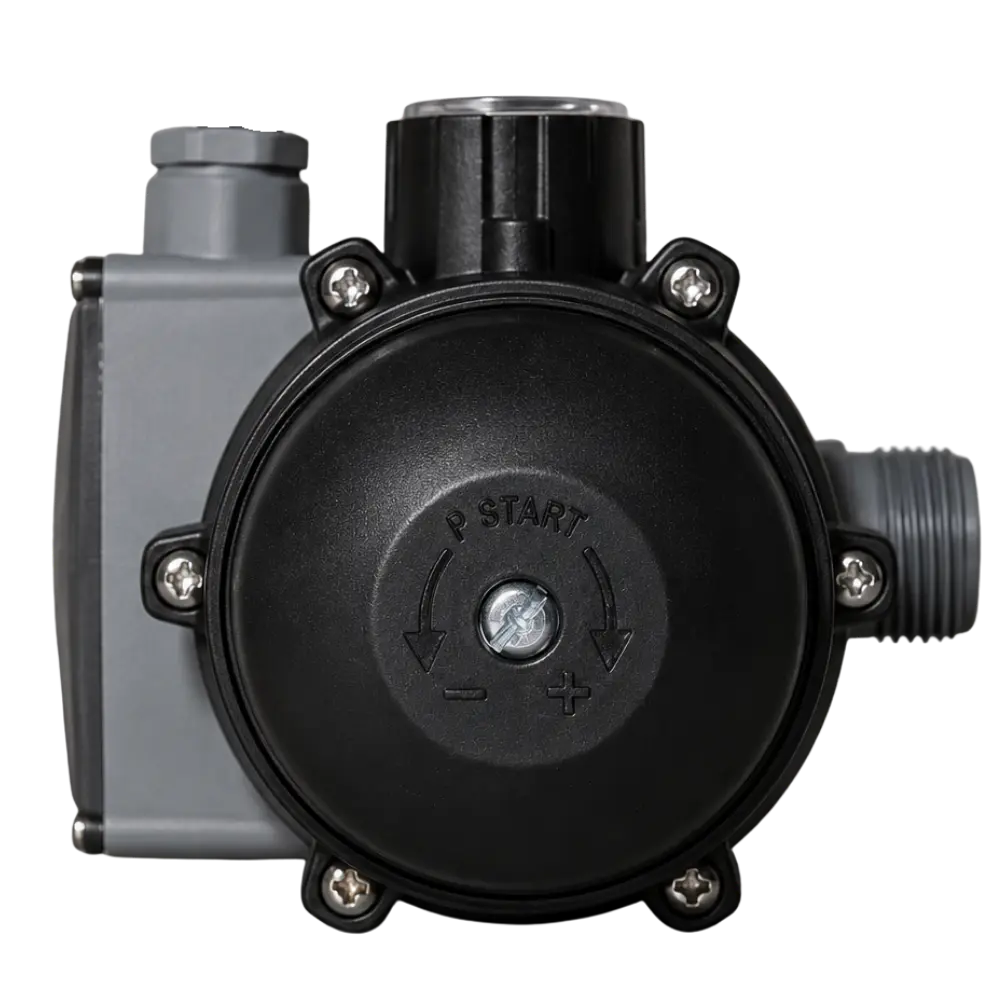

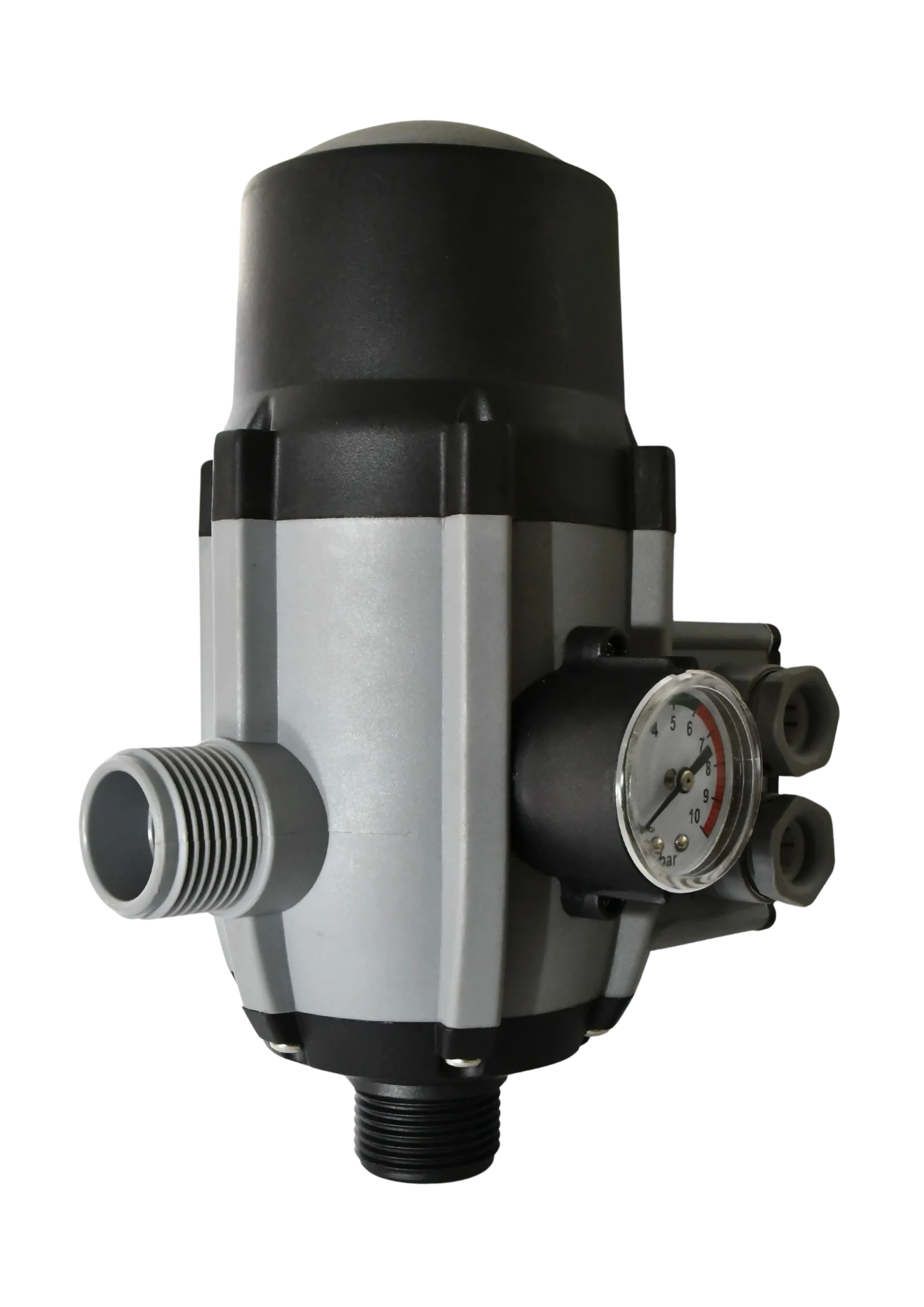

VAMA PS-13 is an Italian automatic pressure controller designed to control the automatic start and stop of water pumps. It is installed on the pump as an alternative to a traditional pressure tank and provides motor protection against burn-out when the water supply is interrupted. The PS-13 features a side inlet and side outlet, an operating pressure range of 1.5–3 bar, and a maximum pressure of 10 bar. It also includes an integrated check valve, externally insulated copper flow sensor, pressure indicator, timer, self-search function, and test cable. The unit operates at 220V / 50Hz and can be adjusted for applications from the 1st to the 6th floor. It is suitable for pumps from 0.5 HP to 1.5 HP with a maximum current of 10 A.
| Specification | Value |
|---|---|
| Product Name | VAMA PS-13 Automatic Pressure Controller |
| Model | PS-13 |
| Country of Manufacture | Italy |
| Product Type | Automatic Pressure Controller |
| Inlet | Side Inlet |
| Outlet | Side Outlet |
| Operating Pressure | 1.5–3 bar |
| Maximum Pressure | 10 bar |
| Check Valve | Included |
| Flow Sensor | Externally Insulated Copper |
| Maximum Temperature | 60°C |
| Protection Rating | IP65 |
| Pressure Indicator | Included |
| Timer | Included |
| Self-Search Function | Included |
| Test Cable | Included |
| Voltage | 220V / 50Hz |
| Floor Range | 1st to 6th Floor |
| Compatible Pump Power | 0.5–1.5 HP |
| Maximum Current | 10 A |
High-reliability components compliant with European industrial standards.
| Component | Material |
|---|---|
| Flow Sensor | Externally Insulated Copper |
| Check Valve | Integrated |
| Pressure Indicator | Integrated |
| Timer | Built-in |
| Self-Search Function | Integrated |
| Test Cable | Included |
| Housing | IP65 Protected Housing |
VAMA PS-13 is an Italian automatic pressure controller designed for reliable automatic water pump control. It combines pressure regulation, an externally insulated copper flow sensor, an integrated check valve, and a pressure indicator with IP65 protection. The controller also provides motor protection during water interruption and supports adjustable operation for applications from the 1st to the 6th floor.
Tervina provides technical support to help customers select the appropriate VAMA PS-13 controller according to the water pump power, application, and installation requirements.
The VAMA PS-13 should be installed on the water system to automatically control the start and stop of the water pump. The controller should be matched to the pump rating, supporting pumps from 0.5 HP to 1.5 HP with a maximum current of 10 A. Ensure that the electrical supply is 220V / 50Hz and that the side inlet and outlet connections are properly secured. The unit can be adjusted for applications from the 1st to the 6th floor. Regular inspection of water and electrical connections is recommended, and the power supply must be disconnected before maintenance.
