Automatic Pump Start & Stop with Water Interruption Protection
Automatic Control and Protection for Water Pump Systems

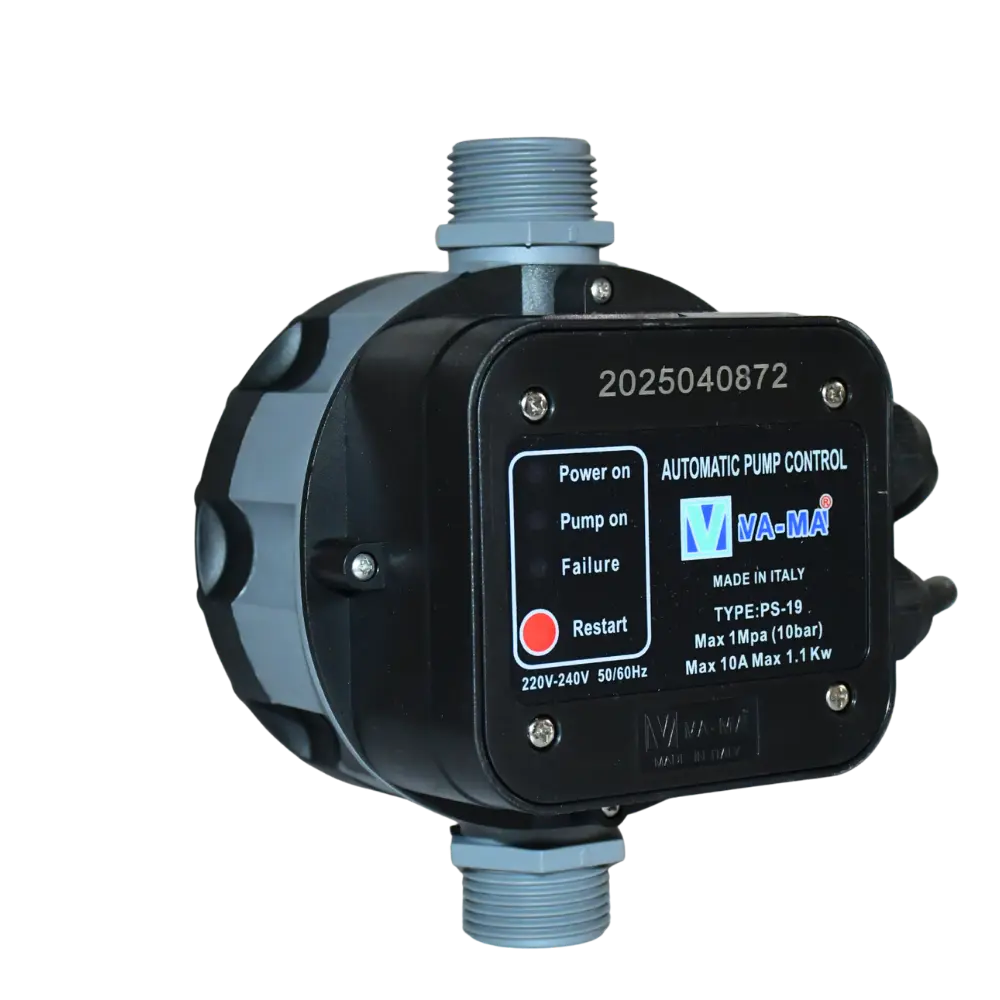

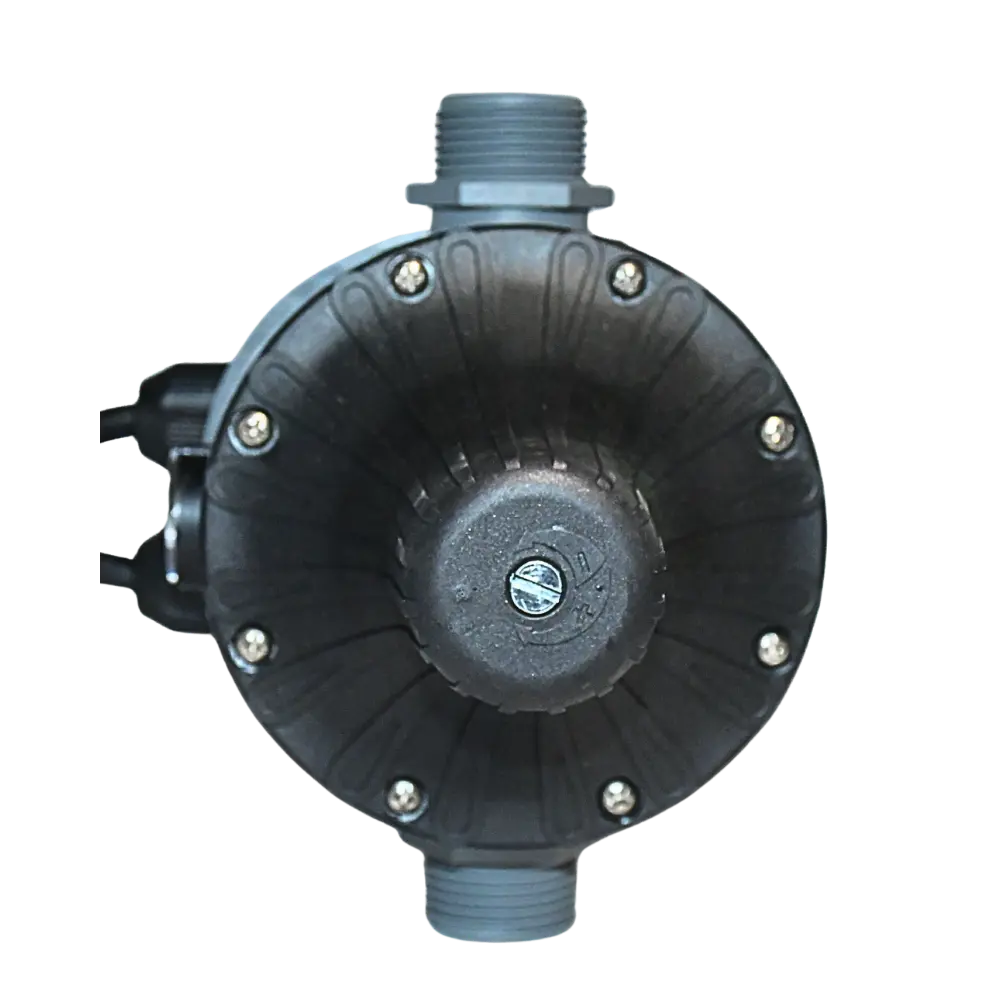

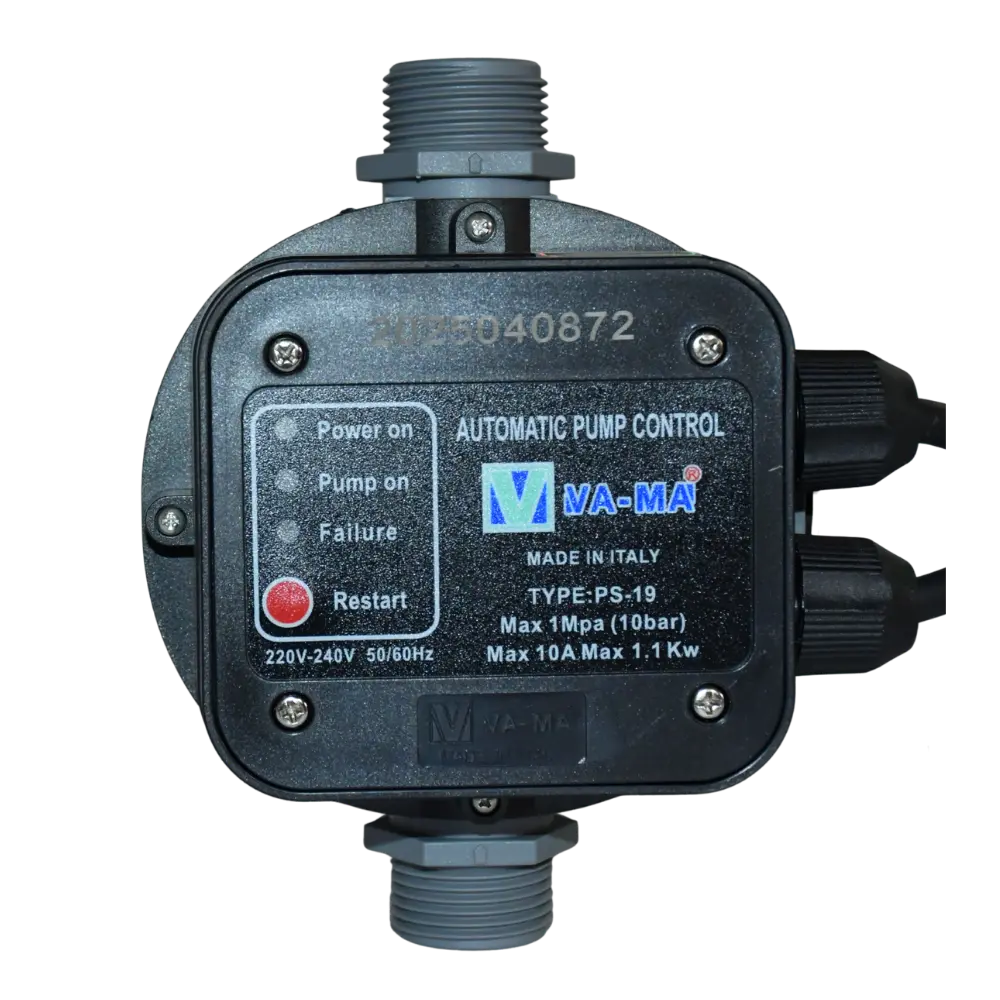

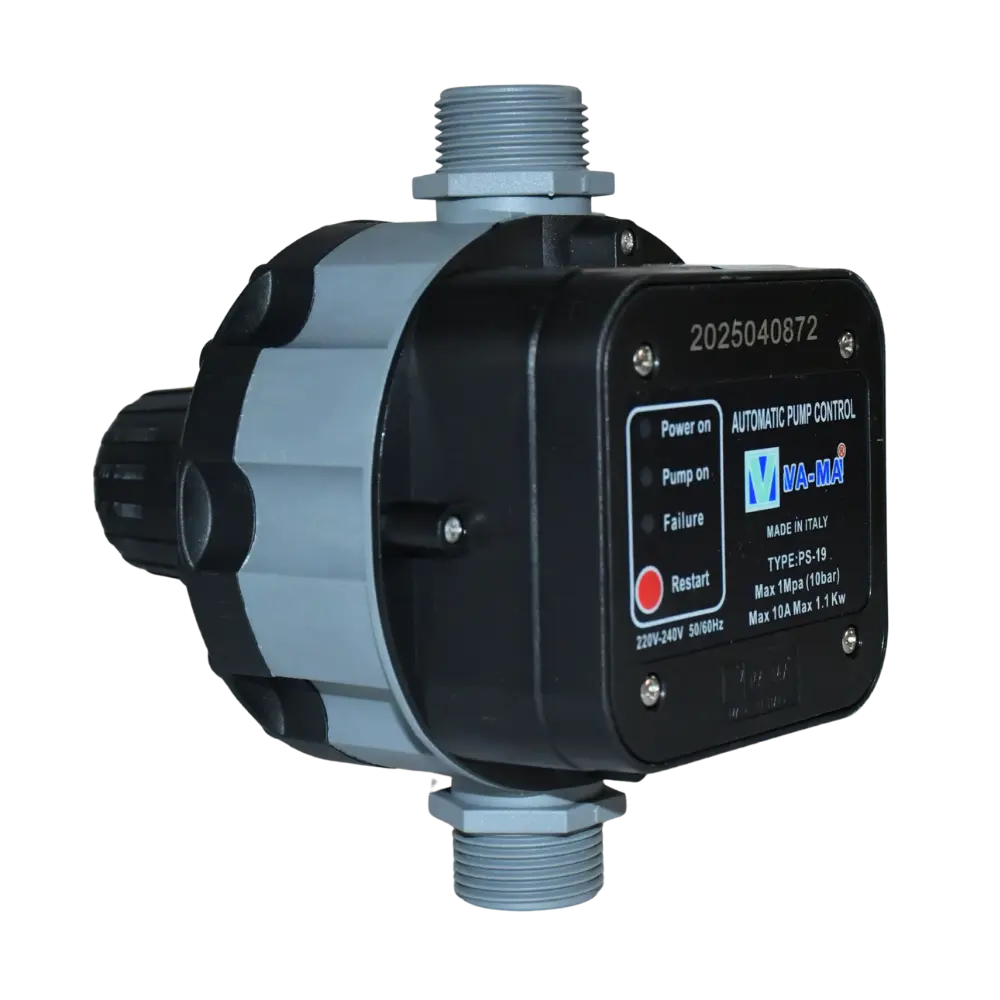

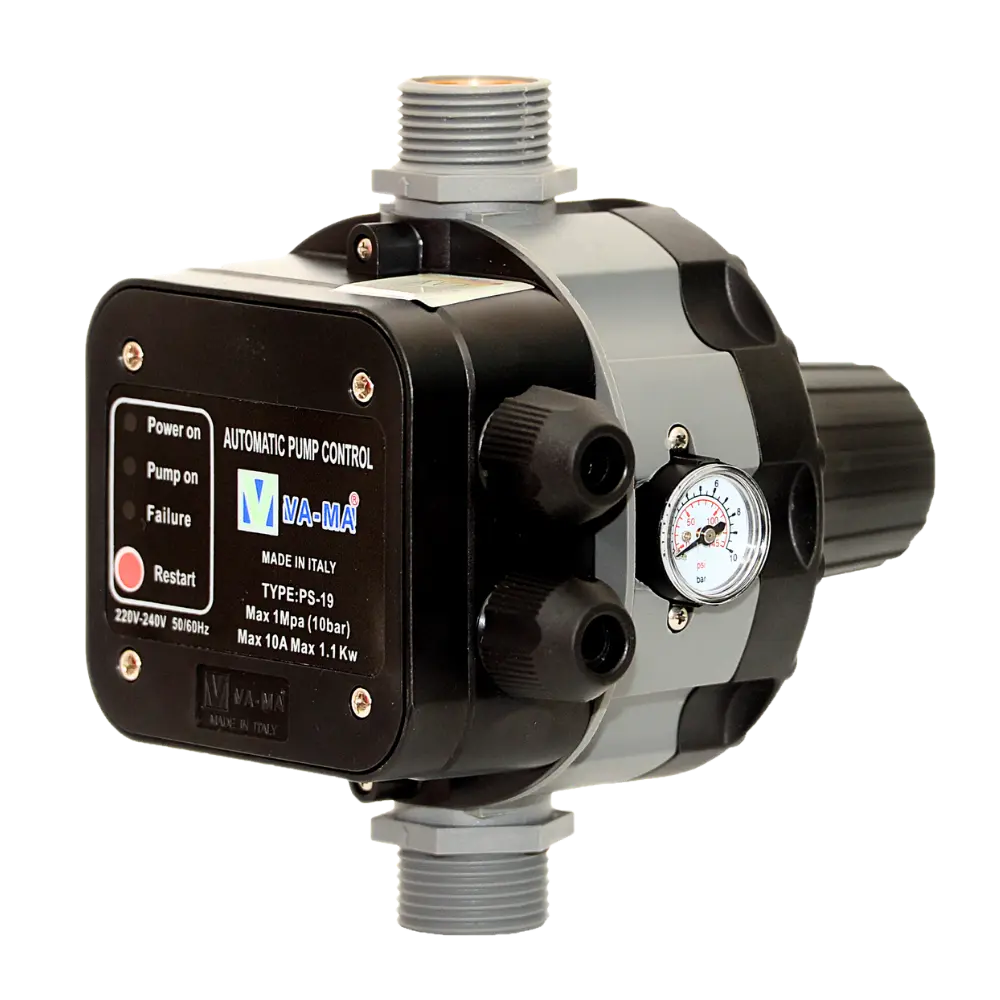

VAMA PS-19 is an Italian automatic pressure controller designed to control the automatic start and stop of water pumps. It can be installed on the pump as an alternative to a pressure tank and provides protection against motor burn-out when the water supply is interrupted. The controller operates at 220V / 50Hz, with an operating pressure range of 1.5–3 bar and a maximum pressure of 10 bar. It features an integrated check valve, copper flow sensor, pressure indicator, timer, self-search function, and test cable.
| Specification | Value |
|---|---|
| Product Name | VAMA PS-19 Automatic Pressure Controller |
| Model | PS-19 |
| Country of Manufacture | Italy |
| Product Type | Automatic Pressure Controller |
| Operating Pressure | 1.5–3 bar |
| Maximum Pressure | 10 bar |
| Check Valve | Included |
| Flow Sensor | Copper |
| Maximum Temperature | 60°C |
| Protection Rating | IP65 |
| Pressure Indicator | Included |
| Timer | Included |
| Self-Search Function | Included according to product specification |
| Test Cable | Included |
| Voltage | 220V / 50Hz |
| Vertical Application | 1st to 6th floor |
| Compatible Motor Power | 0.5–1.5 HP |
| Maximum Current | 10 A |
High-reliability components compliant with European industrial standards.
| Component | Material |
|---|---|
| Flow Sensor | Copper |
| Check Valve | Integrated |
| Pressure Indicator | Integrated |
| Test Cable | Included |
| Housing | IP65 Protected Housing |
VAMA PS-19 is an Italian automatic pressure controller designed for reliable water pump start/stop control. It combines pressure control, a flow sensor, an integrated check valve, and a pressure indicator with IP65 protection and water-interruption motor protection.
Tervina provides technical support to help customers select the appropriate VAMA PS-19 controller according to the water pump power and installation requirements, and to ensure compatibility with the intended system.
The VAMA PS-19 should be installed on the water line to automatically control the start and stop of the water pump. Make sure the controller is compatible with the pump power, supporting pumps from 0.5 HP to 1.5 HP with a maximum current of 10 A. The electrical supply should be 220V / 50Hz, and all water and electrical connections should be properly secured. Regular inspection of the controller and connections is recommended, and the electrical supply must be disconnected before maintenance.
